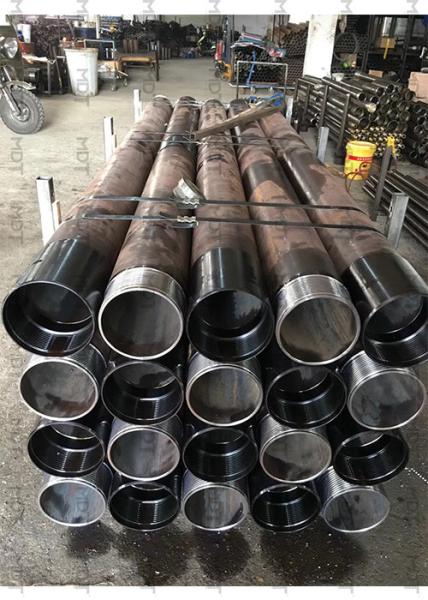

127mm Casing Pipe
127mm Casing Pipe
Specifications
Brand Name :
MEGA DRILLTECH
Model Number :
127mm
Certification :
ISO9001
Place of Origin :
CHINA
Payment Terms :
T/T, T/T, T/T, T/T, T/T
Packaging Details :
BUNDLE PACKING
TYPE :
273 casing pipe
Description

W Casing Numbers
Std OD (mm) ID (mm) Wall Thickness
(mm)		 Thread Pitch
(mm)		 Pin Thread Length
(mm)		 Weight
(kg/m)
AW 57.20 48.40 4.40 6.35 57.20 5.73
BW 73.00 61.00 6.00 6.35 63.50 10.51
NW 88.90 76.20 6.35 6.35 69.90 12.92
NWA 91.00 80.00 5.50 6.00 72.00 11.59
HW 114.30 101.60 6.35 6.35 76.20 16.90
PW 139.70 127.00 6.35 8.47 82.60 20.87

WT Casing Numbers
Std OD (mm) ID (mm) Wall Thickness
(mm)		 Thread Pitch
(mm)		 Pin Thread Length
(mm)		 Weight
(kg/m)
HWT 114.30 101.60 6.35 10.16 62.74 16.90
PWT 139.70 127.00 6.35 10.16 62.74 20.87

NW HW PW Casing Pipe And Tube

Rod Model
OD (mm)
ID (mm)
Threads Pitch(mm)
Pin Length(mm)
Rod Length(m)
Packing Dimension (mm)
Gross Weight (KG)
Unit Bundle Qty (pcs)
BW
73
60.3
6.4
63.5
3
3200*370*330
595
7
NW
88.9
76.2
6.4
69.85
3
3200*500*400
760
7
HW
114.3
101.6
6.4
76.2
3
3200*400*300
373
7
PW
139.7
127
6.4
82.55
3
3200*500*400
463
7
HWT
114.3
101.6
10.2
44.45
3
3200*400*300
373
7

HWT PWT PW HW NW BX HX NX PX casing pipe

Forsun manufactures Metric Casing and Flush-Jointed Casing and Flush-Coupled Casing.

Sizes include BW, NW, HW, PW, HWT, 46mm, 56mm, 66mm, 76mm, 86mm, 98mm(101mm), 113mm(116mm), 128mm(131mm), 146mm(143mm), 4", 5", 6", 8", 10", 12", NX, HX, PX, 89 mm,108 mm, 127 mm, 110 mm.
