1/4 2.33mm F2.4 Megapixel M7x0.35 mount 128degree wide-angle lens for OV9712/OV7725
1/4 2.33mm F2.4 Megapixel M7x0.35 mount 128degree wide-angle lens for OV9712/OV7725
1/4 2.33mm F2.4 Megapixel M7x0.35 mount 128degree wide-angle lens for OV9712/OV7725
1/4 2.33mm F2.4 Megapixel M7x0.35 mount 128degree wide-angle lens for OV9712/OV7725
1/4 2.33mm F2.4 Megapixel M7x0.35 mount 128degree wide-angle lens for OV9712/OV7725
1/4 2.33mm F2.4 Megapixel M7x0.35 mount 128degree wide-angle lens for OV9712/OV7725
Specifications
Place of Origin :
China
Model Number :
140233MPF-M7
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M7 Mount Wide Angle Lens
Resolution :
Megapixel
FOV(DxHxV) :
128°*99°*73°
Lens Constructure :
3G1P/3G1P+IR
Description

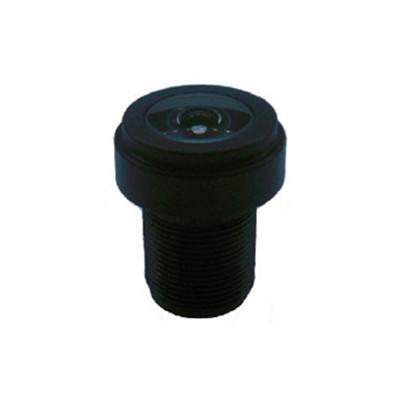

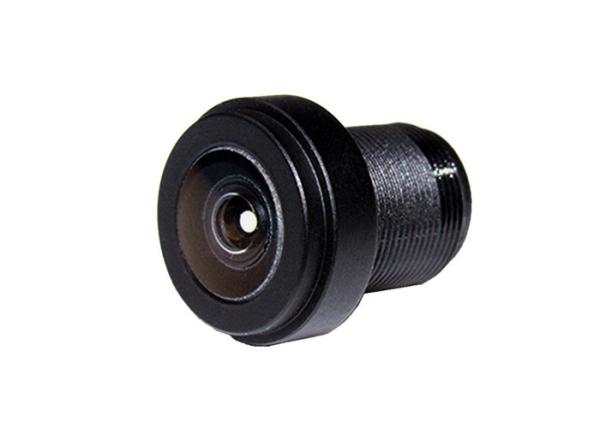

1/4" 2.33mm F2.4 Megapixel M7x0.35 mount 160degree wide-angle lens for OV9712/OV7725, 2.33mm M7 lens for Car rearview cctv cameras
MODEL 140233MPF-M7
SENSOR SIZE 1/4” (OV9712)
FOCAL LENGTH(EFL) 2.33mm
F.O.V.(DxHxV) 128°*99°*73°
RESOLUTION MP
APERTURE F2.4
TV DISTORTION <9.5%
MOUNT M7xP0.35
B.F.L. 2.36mm
F.B.L. 2.22mm
T.T.L. 13.18mm
C.R.A. <13°
R.I. >91%
LENS CONSTRUCTURE 3G1P+IR
DIMENSION Φ10*10.82mm

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M7/M12 mount option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
