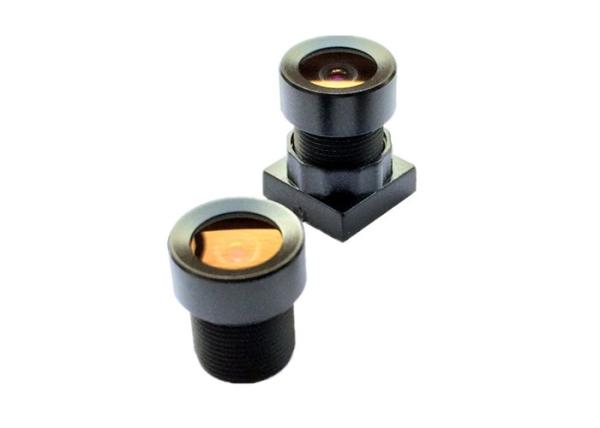

1/4 2.3mm F2.4 2Megapixel M7/M8 mount wide-angle lens for OV2640/OV2643/OV9712
1/4 2.3mm F2.4 2Megapixel M7/M8 mount wide-angle lens for OV2640/OV2643/OV9712
1/4 2.3mm F2.4 2Megapixel M7/M8 mount wide-angle lens for OV2640/OV2643/OV9712
1/4 2.3mm F2.4 2Megapixel M7/M8 mount wide-angle lens for OV2640/OV2643/OV9712
1/4 2.3mm F2.4 2Megapixel M7/M8 mount wide-angle lens for OV2640/OV2643/OV9712
1/4 2.3mm F2.4 2Megapixel M7/M8 mount wide-angle lens for OV2640/OV2643/OV9712
1/4 2.3mm F2.4 2Megapixel M7/M8 mount wide-angle lens for OV2640/OV2643/OV9712
1/4 2.3mm F2.4 2Megapixel M7/M8 mount wide-angle lens for OV2640/OV2643/OV9712
Specifications
Place of Origin :
China
Model Number :
14023MP 14023MPF
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M7/M8 Mount Wide Angle Lens
Resolution :
2MP
FOV(DxHxV) :
138°*98°*70°
Lens Constructure :
5G/5G+IR
Description

1/4" 2.3mm F2.4 2Megapixel M7/M8-mount 138degree wide-angle lens for OV2640/OV2643/OV9712, M8x0.5 or M8x0.35 or M7x0.35 mount lens, able to match OV5640

MODEL 14023MPF-M8
SENSOR FORMAT 1/4"
SENSOR SIZE 1/4” (OV2640/OV2643)
FOCAL LENGTH(EFL) 2.3mm
F.O.V.(D*H*V) 138°*98°*70°
RESOLUTION 2MP
APERTURE F2.4
OPTICAL DISTORTION <-25%
MOUNT M8xP0.5
B.F.L. 4.33mm
F.B.L. 2.79mm
T.T.L. 12.85mm
LENS CONSTRUCTURE 5G+IR(650nm)

MODEL 14023MPF-M8(B1)
SENSOR FORMAT 1/4"
SENSOR SIZE 1/4” (OV2640/OV2643)
FOCAL LENGTH(EFL) 2.3mm
F.O.V.(D*H*V) 138°*98°*70°
RESOLUTION 2MP
APERTURE F2.4
OPTICAL DISTORTION <-25%
MOUNT M8xP0.35
B.F.L. 4.33mm
F.B.L. 2.79mm
T.T.L. 12.85mm
LENS CONSTRUCTURE 5G+IR(650nm)

MODEL 14023MPF-M7
SENSOR FORMAT 1/4"
SENSOR SIZE 1/4”
(OV5640/OV2640/OV2643/OV9712/HM1375...)
FOCAL LENGTH(EFL) 2.3mm
F.O.V.(D*H*V) 138°*98°*70°
RESOLUTION 2MP
APERTURE F2.4
OPTICAL DISTORTION <-25%
MOUNT M7xP0.35
B.F.L. 4.33mm
F.B.L. 2.79mm
T.T.L. 12.85mm
LENS CONSTRUCTURE 5G+IR(650nm)

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M7/M8/M12 mount option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
