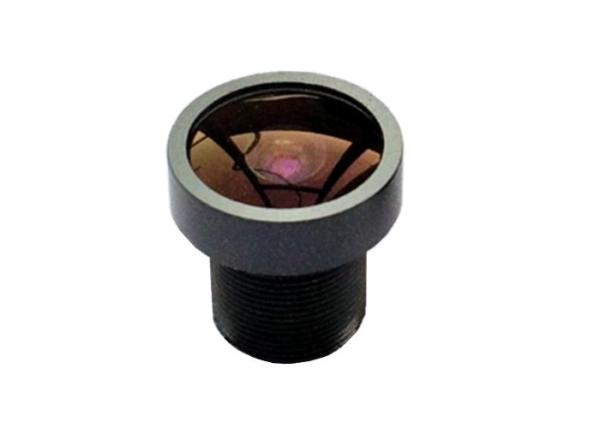

1/3 2.9mm F2.4 3Megapixel M8/M7 mount 140degree Wide Angle Lens for OV4689/AR0330
1/3 2.9mm F2.4 3Megapixel M8/M7 mount 140degree Wide Angle Lens for OV4689/AR0330
1/3 2.9mm F2.4 3Megapixel M8/M7 mount 140degree Wide Angle Lens for OV4689/AR0330
1/3 2.9mm F2.4 3Megapixel M8/M7 mount 140degree Wide Angle Lens for OV4689/AR0330
1/3 2.9mm F2.4 3Megapixel M8/M7 mount 140degree Wide Angle Lens for OV4689/AR0330
1/3 2.9mm F2.4 3Megapixel M8/M7 mount 140degree Wide Angle Lens for OV4689/AR0330
1/3 2.9mm F2.4 3Megapixel M8/M7 mount 140degree Wide Angle Lens for OV4689/AR0330
1/3 2.9mm F2.4 3Megapixel M8/M7 mount 140degree Wide Angle Lens for OV4689/AR0330
Specifications
Place of Origin :
China
Model Number :
13029MPF-M7 / 13029MPF-M8(A) / 13029MPF-M8(B)
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M7/M8 Mount Wide Angle Lens
Resolution :
3MP
FOV(DxHxV) :
140°*110°*68°
Lens Constructure :
5G/5G+IR
Description

1/3" 2.9mm F2.4 3MP 140degree wide-angel lens for AR0330/OV4689, 2.9mm lens for automobile data recorder/vehicle rear-view mirror, AR0330 OV4680 lens

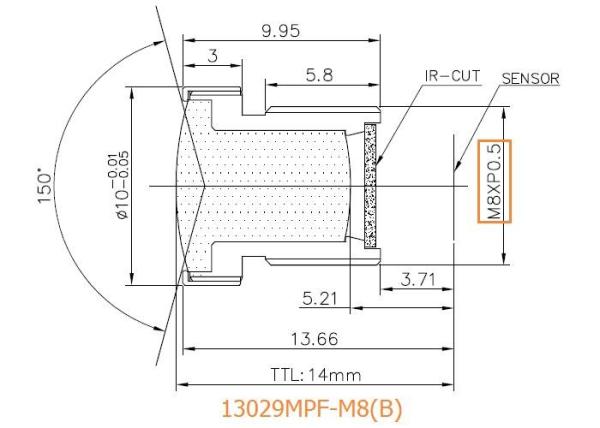

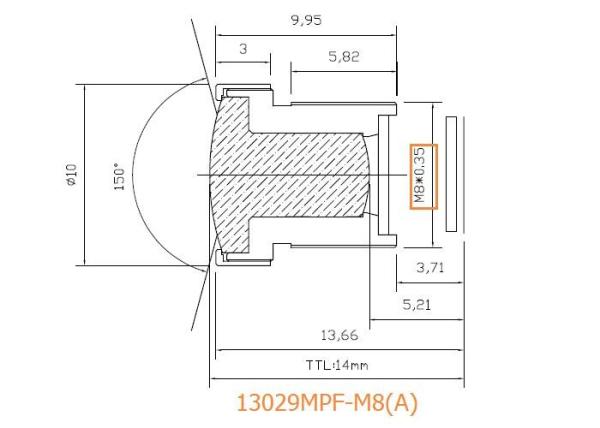

MODEL 13029MPF-M8(A) /13029MPF-M8(B)
SENSOR FORMAT 1/3"
SENSOR SIZE 1/3” ARO330/OV4689
FOCAL LENGTH(EFL) 2.9mm
F.O.V.(D*H*V) 140°*110°*68°
RESOLUTION 3MP
APERTURE F2.4
OPTICAL DISTORTION <-14%
MOUNT M8xP0.35 or M8xP0.5
B.F.L. 5.21mm
F.B.L. 3.71mm
T.T.L. 14mm
LENS CONSTRUCTURE 5G+IR

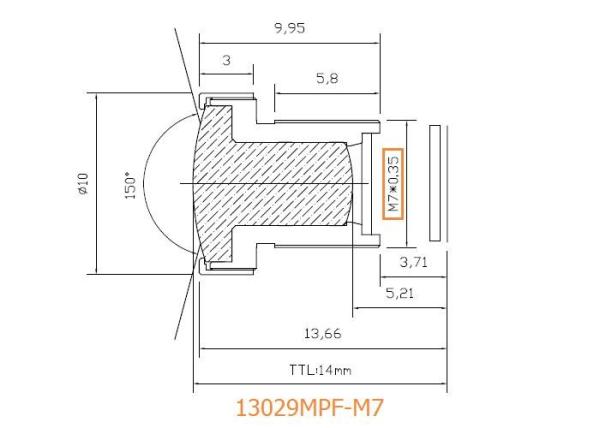

MODEL 13029MPF-M7
SENSOR FORMAT 1/3"
SENSOR SIZE 1/3” ARO330/OV4689
FOCAL LENGTH(EFL) 2.9mm
F.O.V.(D*H*V) 140°*110°*68°
RESOLUTION 3MP
APERTURE F2.4
OPTICAL DISTORTION <-14%
MOUNT M7xP0.35
B.F.L. 5.21mm
F.B.L. 3.71mm
T.T.L. 14mm
LENS CONSTRUCTURE 5G+IR

Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M7/M8/M12 mount option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
