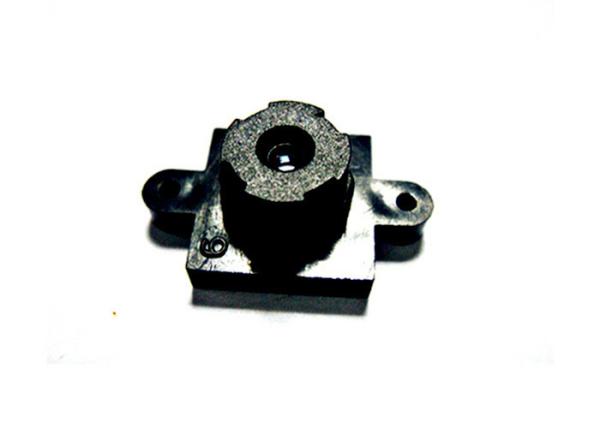

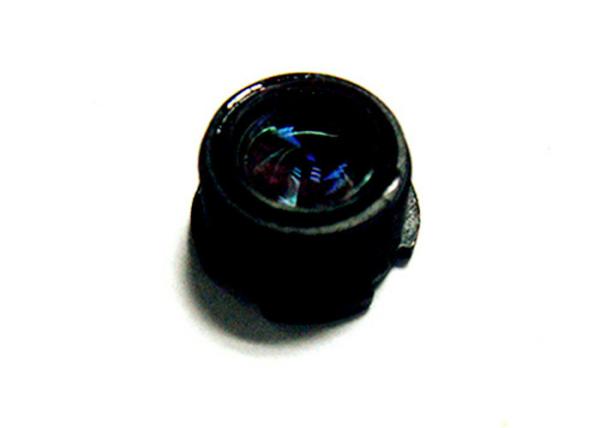

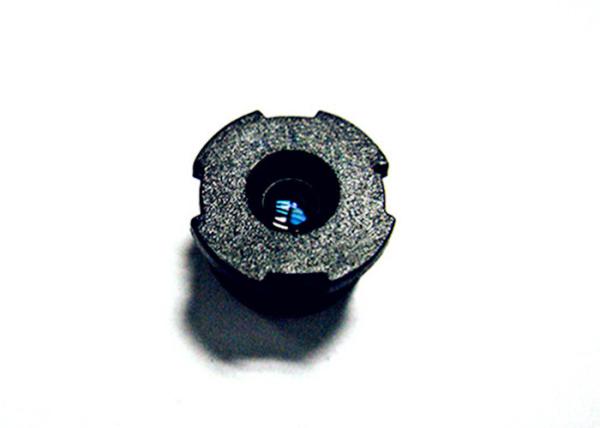

1/3 4.35mm F2.8 5Megapixel M8x0.35 mount low-distortion lens, M8 plastic cctv lens
1/3 4.35mm F2.8 5Megapixel M8x0.35 mount low-distortion lens, M8 plastic cctv lens
1/3 4.35mm F2.8 5Megapixel M8x0.35 mount low-distortion lens, M8 plastic cctv lens
1/3 4.35mm F2.8 5Megapixel M8x0.35 mount low-distortion lens, M8 plastic cctv lens
1/3 4.35mm F2.8 5Megapixel M8x0.35 mount low-distortion lens, M8 plastic cctv lens
1/3 4.35mm F2.8 5Megapixel M8x0.35 mount low-distortion lens, M8 plastic cctv lens
Specifications
Place of Origin :
China
Model Number :
130435MP-M8 130435MPF-M8
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M8 Mount Non-distortion Optical Lens
Resolution :
5MP
DFOV :
63°
Lens Constructure :
5P/5P+IR
Description
1/3" 4.35mm F2.8 5MP M8x0.35 mount non distortion lens, plastic M8 cctv lens
Model 130435MPF-M8
IMAGE FORMAT 1/3”
FOCAL LENGTH/EFL 4.35mm
Effective image diameter Φ6.05mm
F.O.V. 63°
RESOLUTION 5MP
OPTICAL DISTORTION <1.0%
APERTURE F2.8
MOUNT M8XP0.35
CHIEF RAY ANGLE <24°
F.B.L. 0.98mm
T.T.L. 6.70mm
DIMENSION Φ9.0×5.72mm
CONSTRUCTION 5P+IR
IR T50%=645nm+/-10nm
Tips:

- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
