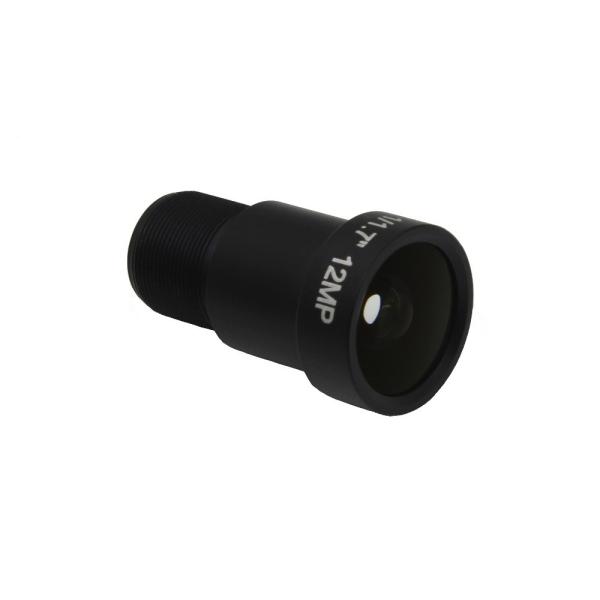

1/1.7 1/1.8 5mm F2.0 12Megapixel M12x0.5 mount board lens, 4K board lens
1/1.7 1/1.8 5mm F2.0 12Megapixel M12x0.5 mount board lens, 4K board lens
1/1.7 1/1.8 5mm F2.0 12Megapixel M12x0.5 mount board lens, 4K board lens
1/1.7 1/1.8 5mm F2.0 12Megapixel M12x0.5 mount board lens, 4K board lens
1/1.7 1/1.8 5mm F2.0 12Megapixel M12x0.5 mount board lens, 4K board lens
1/1.7 1/1.8 5mm F2.0 12Megapixel M12x0.5 mount board lens, 4K board lens
1/1.7 1/1.8 5mm F2.0 12Megapixel M12x0.5 mount board lens, 4K board lens
1/1.7 1/1.8 5mm F2.0 12Megapixel M12x0.5 mount board lens, 4K board lens
1/1.7 1/1.8 5mm F2.0 12Megapixel M12x0.5 mount board lens, 4K board lens
1/1.7 1/1.8 5mm F2.0 12Megapixel M12x0.5 mount board lens, 4K board lens
Specifications
Place of Origin :
China
Model Number :
11705MP 11705MPF
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M12 Mount Board Lens
Resolution :
12MP
FOV(D*H*V) :
1/1.7" 121.4°*90°*65°; 1/2.5" 87°*68.6°*49.7°; 1/3" 70.9°*55.5°*41.2°
Lens Constructure :
8G/8G+IR
Description

1/1.7" 1/1.8" 5mm F2.0 12Megapixel M12x0.5 mount IR wide angle lens, 4K ultra high resolution lens, M12 mount ultra high resolution wide angle cctv lens for 1/1.7" 1/1.8", 1/2.5", 1/3" sensors

MODEL 11705MP
IMAGE FORMAT 1/1.8"

MAX IMAGE CIRCLE Φ8.9mm
FOCAL LENGTH(mm) 5.0
FOV(D*H*V): 1/1.7" 121.4°*90°*65°; 1/1.8" 114.4°*87°*61.8°; 1/2.5" 87°*68.6°*49.7°; 1/3" 70.9°*55.5°*41.2°
RESOLUTION 12MP
APERTURE 2.0
OPTICAL DISTORTION -43.7%
MOUNT(mm) M12x0.5
IRIS Fixed
B.F.L. 6.39mm
M.B.F. 6.05mm
TTL(mm) 35.45
M.O.D.(m) 0.3
LENS DIMENSION Φ17*29.4mm
IR COLLECTION YES

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- CS/M12 mount option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
