1/1.7” 1/1.8 8mm F1.8 12Megapixel M12x0.5 mount board lens, 1/1.7 1/1.8 4K lens
1/1.7” 1/1.8 8mm F1.8 12Megapixel M12x0.5 mount board lens, 1/1.7 1/1.8 4K lens
1/1.7” 1/1.8 8mm F1.8 12Megapixel M12x0.5 mount board lens, 1/1.7 1/1.8 4K lens
1/1.7” 1/1.8 8mm F1.8 12Megapixel M12x0.5 mount board lens, 1/1.7 1/1.8 4K lens
1/1.7” 1/1.8 8mm F1.8 12Megapixel M12x0.5 mount board lens, 1/1.7 1/1.8 4K lens
1/1.7” 1/1.8 8mm F1.8 12Megapixel M12x0.5 mount board lens, 1/1.7 1/1.8 4K lens
Specifications
Place of Origin :
China
Model Number :
11708MP 11708MPF
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M12 Mount Board Lens
Resolution :
12MP
FOV(D*H*V) :
1/1.7" 72.64°*57.12°*42.44°; 1/2.5" 50.7°*44.4°*32.6°; 1/3" 43°*34.7°*26.4°
Lens Constructure :
8G/8G+IR
Description

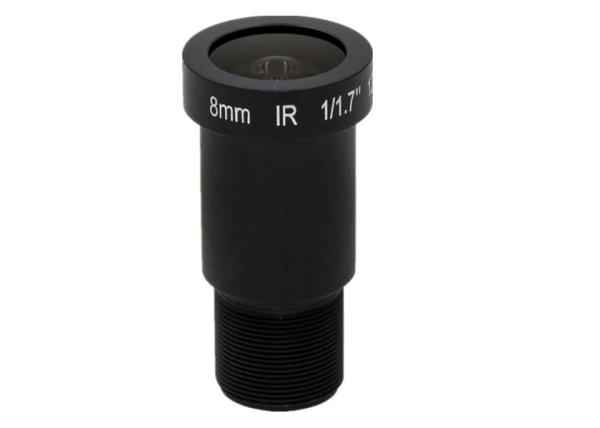

1/1.7" 1/1.8" 8mm F1.8 12Megapixel M12x0.5 mount IR wide angle lens, 4K ultra high resolution lens, M12 mount ultra high resolution wide angle cctv lens for 1/1.7" 1/1.8", 1/2.5", 1/3" sensors

MODEL 11708MP
IMAGE FORMAT 1/1.8"

MAX IMAGE CIRCLE Φ8.9mm
FOCAL LENGTH(mm) 8.0
FOV(D*H*V) 1/1.7" 72.64°*57.12°*42.44°; 1/1.8" 69.5°*55.6°*40.3°; 1/2.5" 50.7°*44.4°*32.6°; 1/3" 43°*34.7°*26.4°
RESOLUTION 12MP
APERTURE 1.8
OPTICAL DISTORTION -15.68%
MOUNT(mm) M12x0.5
IRIS Fixed
B.F.L. 10.02mm
M.B.F. 6.80mm
M.O.D.(m) 0.3
LENS DIMENSION Φ17*33.1mm
IR COLLECTION YES

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

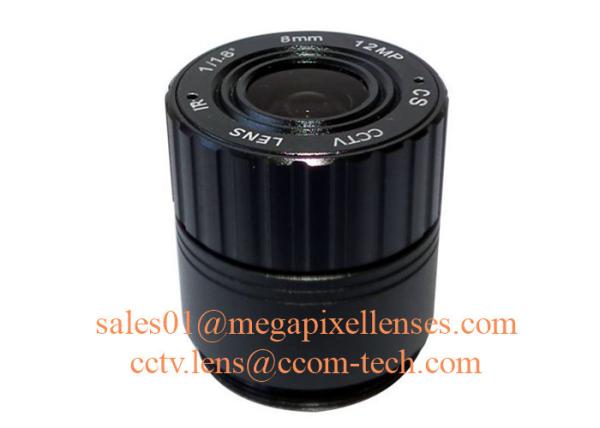

- CS/M12 mount option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
