Specifications
Place of Origin :
China
Model Number :
1320265MPF
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
Description

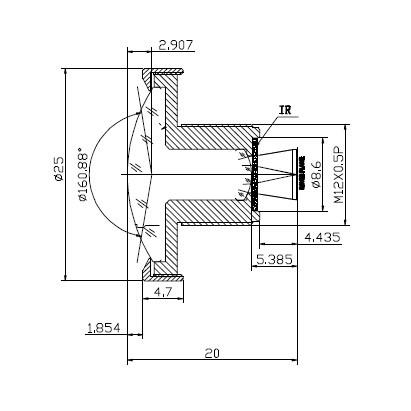

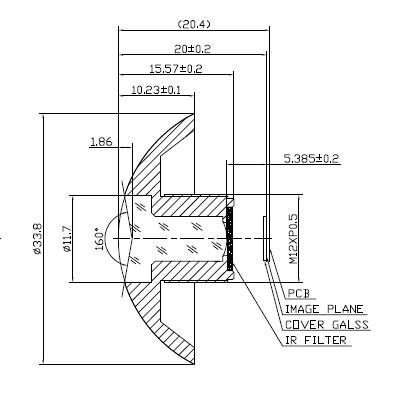

1/3.2" 2.65mm 3Megapixel S-mount 142degree wide angle lens for simulation robot vision for 1/3.2" AR0330/ 1/4" OV9712

MODEL 1320265MPF
SENSOR FORMAT 1/3.2" AR0330/ 1/4" OV9712
MAX IMAGE CIRCLE Φ6mm
FOCAL LENGTH(EFL) 2.65mm
F.O.V. (D*H*V) 1/3.2” AR0330: 142°*120°*64°; 1/4” OV9712: 108°*91°*54°
RESOLUTION 3MP
APERTURE F2.4
OPTICAL DISTORTION 1/3.2” AR0330: H -8.2%, V -32.1%; 1/4” OV9712: H -6.2%, V -15.0%
MOUNT M12X0.5
B.F.L.(O) 5.385mm
B.F.L.(M) 4.435mm
T.T.L. 20.0mm
LENS CONSTRUCTURE 5G+IR
RELATIVE ILLUMINATION 1/3.2” AR0330: >83.9%; 1/4” OV9712: >89.6%
IR COATING 640+/-8NM AT:50%
CHIEF RAT ANGLE 1/3.2” AR0330: <15°; 1/4” OV9712: <13.°
