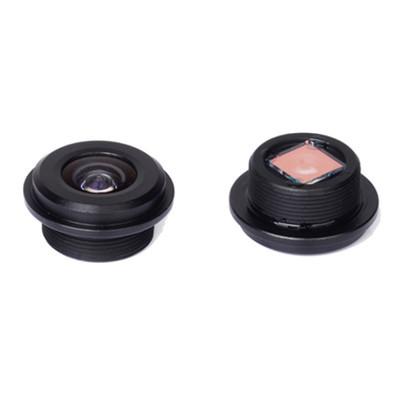

1/4 0.95mm F2.0 M12x0.5 mount 165degree Wide Angle Lens for OV7725/OV7740
1/4 0.95mm F2.0 M12x0.5 mount 165degree Wide Angle Lens for OV7725/OV7740
1/4 0.95mm F2.0 M12x0.5 mount 165degree Wide Angle Lens for OV7725/OV7740
1/4 0.95mm F2.0 M12x0.5 mount 165degree Wide Angle Lens for OV7725/OV7740
Specifications
Place of Origin :
China
Model Number :
14095-M12(B1) 14095F-M12(B1)
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M12 Mount Board Lens
Resolution :
VGA/0.3MP
F.O.V.(D*H*V) :
165°*125°*105°
Lens Constructure :
2P2G/2P2G+IR
Description

1/4" 0.95mm F2.0 M12 Mount VGA 165degree Wide Angle Lens for vehicle rear-view mirror, 0.95mm M12 lens for OV7740 OV7725

Model 14095-M12(B1)
IMAGE FORMAT 1/4"
MAX IMAGE CIRCLE Ø 5.12mm
FOCAL LENGTH(EFL) 0.95mm
F.O.V (D*H*V) 165°*125°*105°
DISTORTION <-8.5%
APERTURE F2.0
RESOLUTION VGA
MOUNT M12XP0.5
IRIS Fixed
B.F.L. 2.12mm
F.B.L. 1.52mm
T.T.L. 9.3mm
DIMENSION Φ16×7.78mm
LENS COMPOMENT 2P2G+IR
CUT FREQUENCY AT 50% 650±10nm
R.I. >67%

Tips:

- ***F: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional. F: with IR filter

- Waterproof version is optional.

- M12/M8/M7 mount option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
