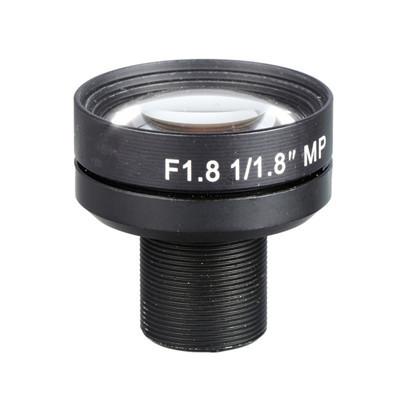

1/1.8 4.5mm 5Megapixel F1.8/F2.5 S Mount M12x0.5 Non-Distortion IR Board Lens
1/1.8 4.5mm 5Megapixel F1.8/F2.5 S Mount M12x0.5 Non-Distortion IR Board Lens
1/1.8 4.5mm 5Megapixel F1.8/F2.5 S Mount M12x0.5 Non-Distortion IR Board Lens
1/1.8 4.5mm 5Megapixel F1.8/F2.5 S Mount M12x0.5 Non-Distortion IR Board Lens
1/1.8 4.5mm 5Megapixel F1.8/F2.5 S Mount M12x0.5 Non-Distortion IR Board Lens
1/1.8 4.5mm 5Megapixel F1.8/F2.5 S Mount M12x0.5 Non-Distortion IR Board Lens
Specifications
Place of Origin :
China
Model Number :
11804518MP 11804525MP
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Board Lens :
M12 Mount Low-distortion Lens
Resolution :
5MP
Distortion :
<-2.8%
Materials :
Metal+Glass, 8G/8G+IR
Description

Non distortion Lens

● High definition <3% low distortion lens
● High resolution compatible with 1.3-5 Mega-pixel cameras
● Broad band confocal design suitable for both Visible and NIR applications
● Compact design ideal for integration
● Cost-effective for recognition applications

1/1.8" 4.5mm 5Megapixel F1.8/F2.5 M12*0.5 Mount S Mount High Quality Non-Distortion IR Board Lens for 1/1.8" 1/2" sensor

Model 11804518MP
Image Format 1/1.8″
Focal Length 4.5mm
Aperture F1.8
Resolution MP
Horizontal Angle of View 78°
Distortion -2.8%
Mount Type M12*0.5
Minimum Object Distance 0.1m
Back Focal Length 6.4mm

R.I. >60%

C.R.A. <8.25°
Iris Fixed
Constructure 8-7
External Dimensions(mm) Φ26(D)*25(L)

Model 11804525MP
IMAGE FORMAT 1/1.8"
SENSOR CCD/CMOS
FOCAL LENGTH 4.5mm
RESOLUTION 5MP
F.O.V.(D*H*V) 1/1.8”: 90°*78°*62°, 1/2”: 84°*72°*57°
APERTURE F2.5
DISTORTION <-2.8%
EFFECTIVE APERTURE Φ22.2mm(front)
Φ8.9mm(rear)
IRIS Fixed
M.O.D. 0.1m
MOUNT M12XP0.5 - 6g
B.F.L. 6.99mm
T.T.L. 30.13mm
LENS CONSTRUCTURE 8-7
DIMENSION Φ26*23.81mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
