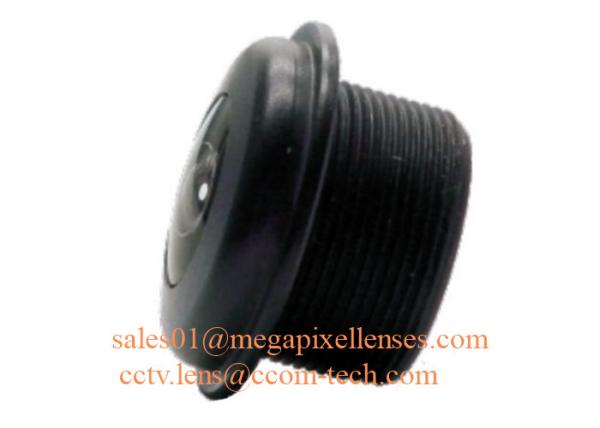

1/3 1.8mm Megapixel M12x0.5 mount 200degree Waterproof Fisheye Lens, IP68 automotive camera lens
1/3 1.8mm Megapixel M12x0.5 mount 200degree Waterproof Fisheye Lens, IP68 automotive camera lens
1/3 1.8mm Megapixel M12x0.5 mount 200degree Waterproof Fisheye Lens, IP68 automotive camera lens
1/3 1.8mm Megapixel M12x0.5 mount 200degree Waterproof Fisheye Lens, IP68 automotive camera lens
1/3 1.8mm Megapixel M12x0.5 mount 200degree Waterproof Fisheye Lens, IP68 automotive camera lens
1/3 1.8mm Megapixel M12x0.5 mount 200degree Waterproof Fisheye Lens, IP68 automotive camera lens
Specifications
Place of Origin :
China
Model Number :
13018MPF-M12
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Board Lens :
M12 Mount Fisheye Lens/Automotic Camera Lens
Resolution :
1.3MP
FOV :
200°(D)*172.5°(H)*123°(V)
Materials :
Metal + Glass
Description

Automotic Camera Lens

- Very wide field angle FOV>180°, can be used as front view, side view, rear view lens.

- Suit for 1/3", 1/3.7", 1/4" sensors.

- All glass lenses, Operating temperature is from -40℃ to 105℃, suit for automotive cars.

- Wear-resistant and waterproof and multi-layer coating, provide great protection and transmittance.

- Very short total length, suit for compact assembly space.

1/3" 1.8mm F2.5 Megapixel M12x0.5 or M10x0.5 Mount 200degree IP68 Waterproof Automotive Camera Lens, 1.8mm Mini Fisheye Lens for 180º 360º panoramic cameras


MODEL 13018MPF-M12
IMAGE FORMAT 1/3"

MAX IMAGE CIRCLE Φ5.2mm
FOCAL LENGTH(mm) 1.8
FOV 1/3" 200°(D)*172.5°(H)*123°(V); 1/3.7" 184°(D)*139°(H)*101°(V); 1/4" 159.5°(D)*123°(H)*90.4°(V)
RESOLUTION MP
APERTURE 2.5

TV DISTORTION <-97%
MOUNT(mm) M12x0.5 (M10x0.5 optional)
IRIS Fixed
M.O.D.(m) 0.2
B.F.L.(mm) 3.5

M.B.F.(mm) 2.9

T.T.L.(mm) 13.2

DIMENSION(mm) Φ16x10.3

OPERATING TEMPERATURE -40℃ ~ +105℃

IR-CUT FILTER: 650nm±20nm at 50% normalized transmittance

AR COATING Multi-layer BBAR coating(Typical reflectivity <1% on front surface, <0.5% on others)
INGRESS PROTECTION IP68

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M12/M10 mount option

- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
