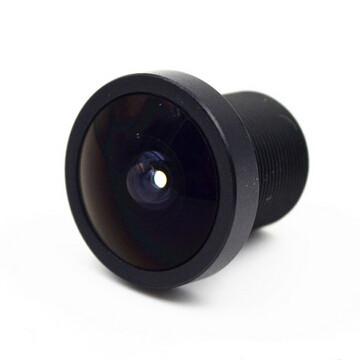

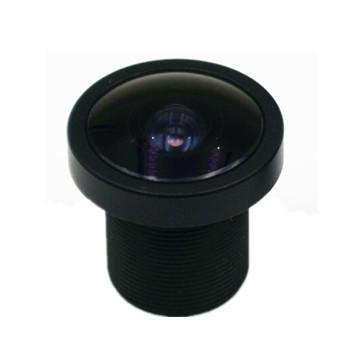

1/2.5 2.8mm F1.8 3Megapixel M12x0.5 Mount 150degree wide angle board lens, 2.8mm cctv lens
1/2.5 2.8mm F1.8 3Megapixel M12x0.5 Mount 150degree wide angle board lens, 2.8mm cctv lens
1/2.5 2.8mm F1.8 3Megapixel M12x0.5 Mount 150degree wide angle board lens, 2.8mm cctv lens
1/2.5 2.8mm F1.8 3Megapixel M12x0.5 Mount 150degree wide angle board lens, 2.8mm cctv lens
1/2.5 2.8mm F1.8 3Megapixel M12x0.5 Mount 150degree wide angle board lens, 2.8mm cctv lens
1/2.5 2.8mm F1.8 3Megapixel M12x0.5 Mount 150degree wide angle board lens, 2.8mm cctv lens
Specifications
Place of Origin :
China
Model Number :
125028MPF-3MP
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M12 Mount Board Lens
Resolution :
3MP
FOV(D*H*V) :
1/2.5": 150°*120°*90°; 1/2.7": 140°*112°*84°; 1/3": 125°*100°*75°
Lens Constructure :
6G/6G+IR
Description

1/2.5" 2.8mm F1.8 1080P 3Megapixel M12x0.5 Mount 150degree wide angle lens for HD cams/sport DV/security cameras/vehicle recorders, 2.8mm M12 lens for 1/2.5" 1/2.7" 1/3" sensors

Model 125028MPF-3MP
SENSOR FORMAT 1/2.5”
FOCAL LENGTH 2.8mm ±5%
RESOLUTION 3MP
F.O.V. (D*H*V) 1/2.5": 150°*120°*90°; 1/2.7": 140°*112°*84°; 1/3": 125°*100°*75°
APERTURE F1.8 ±5%
OPTICAL DISTORTION <20%
IRIS Fixed
M.O.D. 5cm
MOUNT M12XP0.5 - 6g
B.F.L. 6.0mm (in air) ±5%
F.B.L. 5.2mm ±5%
T.T.L. (22.8±0.2)mm
LENS CONSTRUCTURE 6G+IR

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
