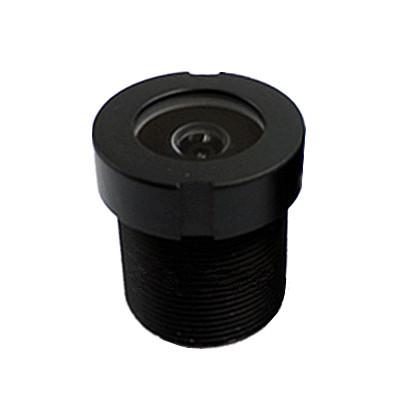

1/4 2.5mm 3megapixel M12x0.5 mount 130degree wide-angle lens for security camera
1/4 2.5mm 3megapixel M12x0.5 mount 130degree wide-angle lens for security camera
1/4 2.5mm 3megapixel M12x0.5 mount 130degree wide-angle lens for security camera
1/4 2.5mm 3megapixel M12x0.5 mount 130degree wide-angle lens for security camera
1/4 2.5mm 3megapixel M12x0.5 mount 130degree wide-angle lens for security camera
1/4 2.5mm 3megapixel M12x0.5 mount 130degree wide-angle lens for security camera
1/4 2.5mm 3megapixel M12x0.5 mount 130degree wide-angle lens for security camera
1/4 2.5mm 3megapixel M12x0.5 mount 130degree wide-angle lens for security camera
Specifications
Place of Origin :
China
Model Number :
14025MPF-A1 / 14025MPF-B1
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M12 Mount Board Lens
Resolution :
3MP
F.O.V.(D*H*V) :
14025MPF-A: 130°*100°*80°; 14025MPF-B: 120°*90°*75°
Lens Constructure :
6G+IR/4G+IR
Description

1/4" 2.5mm 3Megapixel M12x0.5 Mount 130degree wide angle lens for vehicle rear-view mirror/sport DV/vehicle recorder cameras, 2.5mm M12 lens for security cameras, 2.5mm lens for OV9712/NT99141

Model 14025MPF-A
SENSOR FORMAT 1/4”
FOCAL LENGTH 2.5mm ±5%
RESOLUTION 3MP
F.O.V. (D*H*V) 130°*100°*80°
APERTURE F2.0 ±5%
OPTICAL DISTORTION <20%
IRIS Fixed
M.O.D. 0.1m
MOUNT M12XP0.5 - 6g
B.F.L. 4.0mm (in air) ±5%
F.B.L. 3.05mm ±5%
T.T.L. (21.0±0.2)mm
LENS CONSTRUCTURE 6G+IR

Model 14025MPF-B
SENSOR FORMAT 1/4”
FOCAL LENGTH 2.5mm ±5%
RESOLUTION 5MP
F.O.V. (D*H*V) 120°*90°*75°
APERTURE F2.4 ±5%
OPTICAL DISTORTION <20%
IRIS Fixed
M.O.D. 0.2m
MOUNT M12XP0.5 - 6g
B.F.L. 4.3mm (in air) ±5%
F.B.L. 2.8mm ±5%
T.T.L. (16.8±0.2)mm
LENS CONSTRUCTURE 4G+IR

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
