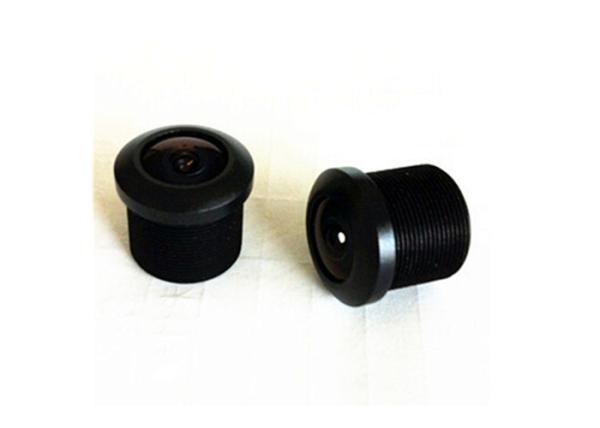

1/4 1.7mm F2.0 M12x0.5 mount 170degree wide-angle lens for vehicle camera, automotive camera lens
1/4 1.7mm F2.0 M12x0.5 mount 170degree wide-angle lens for vehicle camera, automotive camera lens
1/4 1.7mm F2.0 M12x0.5 mount 170degree wide-angle lens for vehicle camera, automotive camera lens
1/4 1.7mm F2.0 M12x0.5 mount 170degree wide-angle lens for vehicle camera, automotive camera lens
1/4 1.7mm F2.0 M12x0.5 mount 170degree wide-angle lens for vehicle camera, automotive camera lens
1/4 1.7mm F2.0 M12x0.5 mount 170degree wide-angle lens for vehicle camera, automotive camera lens
Specifications
Place of Origin :
China
Model Number :
14017-M12 14017F-M12
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M12 Mount Board Lens
Resolution :
VGA/0.3MP
F.O.V.(D) :
170°
Lens Constructure :
4G/4G+IR
Description

1/4" 1.7mm F2.0 M12x0.5 or M8x0.5 Mount 170degree Wide-Angle Automotive Camera Lens, 1.7mm Mini Fisheye Lens for 180º/360º panoramic cameras


MODEL 14017-M12(A)
IMAGE FORMAT 1/4"

FOCAL LENGTH(mm) 1.7
FOV(D) 170°
RESOLUTION 0.3MP/VGA
APERTURE 2.0

MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.3
B.F.L.(mm) 3.25 (in air)

F.B.L.(mm) 2.90 (in air)

T.T.L.(mm) 15.87

DIMENSION(mm) Φ14x13

MODEL 14017-M12(B)
IMAGE FORMAT 1/4"

FOCAL LENGTH(mm) 1.7
FOV(D) 170°
RESOLUTION 0.3MP/VGA
APERTURE 2.0

MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.3
B.F.L.(mm) 3.25

F.B.L.(mm) 1.90 (in air)

T.T.L.(mm) 14.87

DIMENSION(mm) Φ16x13

MODEL 14017-M8
IMAGE FORMAT 1/4"

FOCAL LENGTH(mm) 1.7
FOV(D) 170°
RESOLUTION 0.3MP/VGA
APERTURE 2.0

MOUNT(mm) M8x0.5 (M8x0.35 optional)
IRIS Fixed
M.O.D.(m) 0.3
B.F.L.(mm) 3.25

F.B.L.(mm) 1.9 (in air)

T.T.L.(mm) 13.5

DIMENSION(mm) Φ14x11.7

Tips:
- M12/M8 mount option
- 650nm/850nm/940nm IR filter optional. F: with IR filter

- Waterproof is optional.

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
