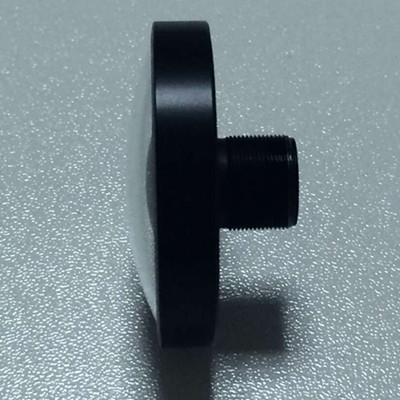

1/2.7 2.85mm F2.4 8Megapixel M12x0.5 mount 138Degree wide angle lens for OV2710/OV4689/OV10635
1/2.7 2.85mm F2.4 8Megapixel M12x0.5 mount 138Degree wide angle lens for OV2710/OV4689/OV10635
1/2.7 2.85mm F2.4 8Megapixel M12x0.5 mount 138Degree wide angle lens for OV2710/OV4689/OV10635
1/2.7 2.85mm F2.4 8Megapixel M12x0.5 mount 138Degree wide angle lens for OV2710/OV4689/OV10635
1/2.7 2.85mm F2.4 8Megapixel M12x0.5 mount 138Degree wide angle lens for OV2710/OV4689/OV10635
1/2.7 2.85mm F2.4 8Megapixel M12x0.5 mount 138Degree wide angle lens for OV2710/OV4689/OV10635
1/2.7 2.85mm F2.4 8Megapixel M12x0.5 mount 138Degree wide angle lens for OV2710/OV4689/OV10635
1/2.7 2.85mm F2.4 8Megapixel M12x0.5 mount 138Degree wide angle lens for OV2710/OV4689/OV10635
Specifications
Place of Origin :
China
Model Number :
1270285MP-B 1270285MPF-B
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M12 Mount Board Lens
Resolution :
8MP
FOV(D*H*V) :
138°*120°*66.5°
Lens Constructure :
7G/7G+IR
Description

1/2.7" 2.85mm F2.4 8Megapixel S-mount M12x0.5 mount 138Degree Wide Angle Lens for OV2710/AR0330/OV4689/OV10635, 2.85mm 8MP wide-angle lens for sport DV/Car DVR

Model: 1270285MPF
SENSOR SIZE 1/2.7" OV2710, 1/3" AR0330, 1/3" OV4689, OV10635
MAX IMAGE CIRCLE Φ7.6mm
FOCAL LENGTH(EFL) 2.85mm
F.O.V. (D*H*V) OV2710: 138°*120°*66.5°; AR0330: 120°*103.5°*58.5°; OV4689: 128°*111.5°*62°; OV10635: 130°*110°*67.5°
RESOLUTION 8MP
APERTURE F2.4
OPTICAL DISTORTION OV2710: H -11.7%, V -40.5%; AR0330: H -7.2%, V -20.98%; OV4689: H -9.2%, V -30.5%; OV10635: H -12.2%, V -35.7%
MOUNT M12X0.5
B.F.L.(O) 6.25mm
B.F.L.(M) 3.32mm
T.T.L. 24.2mm

R.I. OV2710 >74.5%; AR0330 >83%; OV4689 >82.6%; OV10635 >80.5%

C.R.A. OV2710 <22.1°; AR0330 <19.7°; OV4689 <20.6°; OV10635 <21°
LENS CONSTRUCTURE 7G+IR

DIMENSION Φ40x18.88mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- Front head diameter Φ17.5/Φ17.4/Φ17/Φ40 option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
