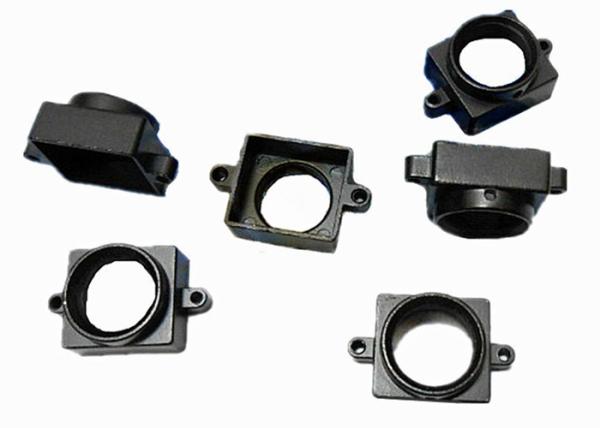

Metal M12x0.5 mount Lens Holder, 20mm fixed pitch holder for board lenses, height 7mm/10mm
Metal M12x0.5 mount Lens Holder, 20mm fixed pitch holder for board lenses, height 7mm/10mm
Metal M12x0.5 mount Lens Holder, 20mm fixed pitch holder for board lenses, height 7mm/10mm
Metal M12x0.5 mount Lens Holder, 20mm fixed pitch holder for board lenses, height 7mm/10mm
Metal M12x0.5 mount Lens Holder, 20mm fixed pitch holder for board lenses, height 7mm/10mm
Metal M12x0.5 mount Lens Holder, 20mm fixed pitch holder for board lenses, height 7mm/10mm
Specifications
Place of Origin :
China
Model Number :
HD36-20 / HD36-20(A)
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Lens Holder :
M12x0.5 Mount Lens Holder
Material :
Metal
Description

Metal M12x0.5 Mount Lens Holder for CCTV Board Lenses, fixed pitch 20mm, total height 7mm/10mm option, pinhole lens holder

Model: HD36-20

MOQ: 100pcs

Outer size (LxWxH): 15.8mm x 15.8mm x 10mm
Inner size (LxWxH): 14.5mm x 14.3mm x 5.1mm
Mount: M12x0.5

Total Height: 10mm
Installation hole diameter: 20mm (the distance between two screws 20mm)

Material: Metal

Model: HD36-20(A)

MOQ: 100pcs

Outer size (LxWxH): 16mm x 16mm x 7mm
Inner size (LxWxH): 14.2mm x 14.2mm x 2.7mm
Mount: M12x0.5

Total Height: 7mm (10mm/14.5mm/16mm optional)
Installation hole diameter: 20mm (the distance between two screws 20mm)

Material: Metal (plastic version optional)

Tips:

- Total Height 7mm/10mm/14.5mm/16mm option

- For more lens accessories, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com.
