Plastic/plastic-steel M12x0.5 mount Lens Holder, 20mm fixed pitch holder, height 14.5mm
Plastic/plastic-steel M12x0.5 mount Lens Holder, 20mm fixed pitch holder, height 14.5mm
Plastic/plastic-steel M12x0.5 mount Lens Holder, 20mm fixed pitch holder, height 14.5mm
Plastic/plastic-steel M12x0.5 mount Lens Holder, 20mm fixed pitch holder, height 14.5mm
Plastic/plastic-steel M12x0.5 mount Lens Holder, 20mm fixed pitch holder, height 14.5mm
Plastic/plastic-steel M12x0.5 mount Lens Holder, 20mm fixed pitch holder, height 14.5mm
Specifications
Place of Origin :
China
Model Number :
HD23-20PA / HD23-20PPS
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
1000pcs
Lens Holder :
M12x0.5 mount lens holder
Material :
Plastic/Plastic Steel
Description

Plastic/Plastic-Steel M12x0.5 Mount Lens Holder for CCTV Board Lenses, fixed pitch 20mm, total height 14.5mm/14.3mm

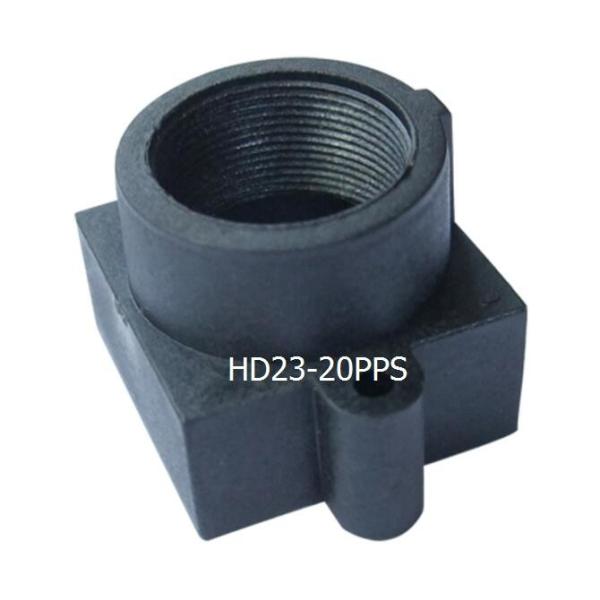

Model: HD23-20PPS
MOQ: 1000pcs
Outer size (LxWxH): 17mm x 17mm x 14.5mm
Inner size (LxWxH): 14.1mm x 14.1mm x 7.2mm
Mount: M12x0.5
Installation hole diameter: 20mm (the distance between two screws 20mm)
Material: Plastic Steel

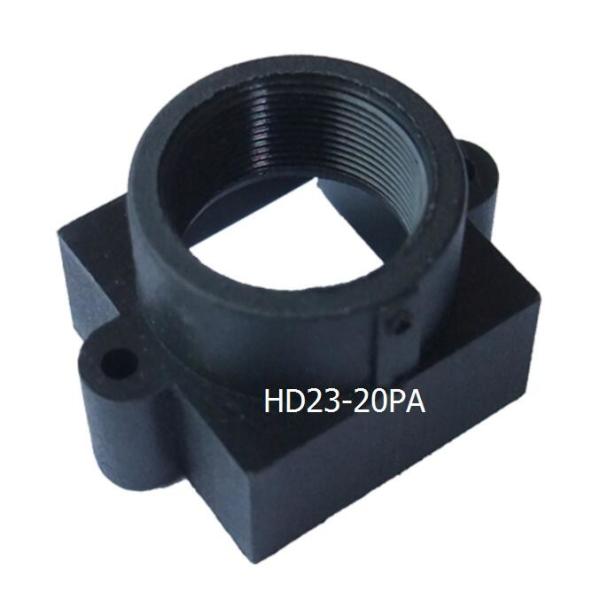

Model: HD23-20PA
MOQ: 1000pcs
Outer size (LxWxH): 17mm x 17mm x 14.3mm
Inner size (LxWxH): 14.6mm x 14.6mm x 7.0mm
Mount: M12x0.5
Installation hole diameter: 20mm (the distance between two screws 20mm)
Material: Plastic

Tips:

- For more lens accessories, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com.
