Waterproof endoscope camera module, 1/18 CMOS, 3.9mm wide, 320×240, DC3.6V
Waterproof endoscope camera module, 1/18 CMOS, 3.9mm wide, 320×240, DC3.6V
Waterproof endoscope camera module, 1/18 CMOS, 3.9mm wide, 320×240, DC3.6V
Waterproof endoscope camera module, 1/18 CMOS, 3.9mm wide, 320×240, DC3.6V
Waterproof endoscope camera module, 1/18 CMOS, 3.9mm wide, 320×240, DC3.6V
Waterproof endoscope camera module, 1/18 CMOS, 3.9mm wide, 320×240, DC3.6V
Waterproof endoscope camera module, 1/18 CMOS, 3.9mm wide, 320×240, DC3.6V
Waterproof endoscope camera module, 1/18 CMOS, 3.9mm wide, 320×240, DC3.6V
Waterproof endoscope camera module, 1/18 CMOS, 3.9mm wide, 320×240, DC3.6V
Waterproof endoscope camera module, 1/18 CMOS, 3.9mm wide, 320×240, DC3.6V
Specifications
Place of Origin :
China
Model Number :
39118-54, 39118-54-LED
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
Description

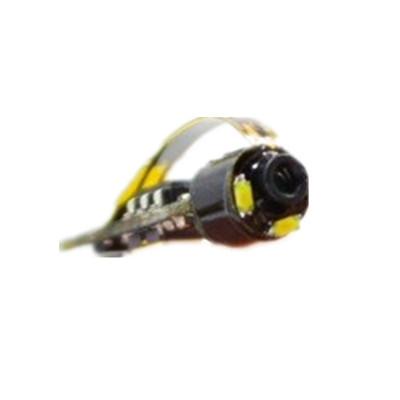

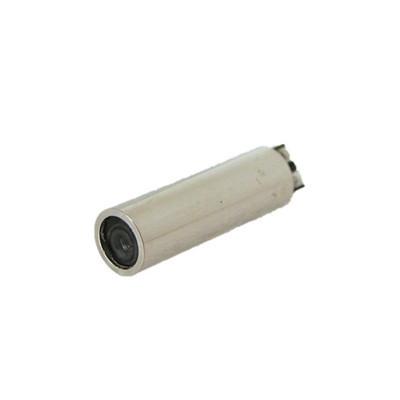

This camera is the world's smallest camera, using 1/18” CMOS chip. The camera outside diameter is only 3.9mm, able to configure wide-angle lenses and telephoto lenses to observe objects at close range.

The camera is suitable for industrial video endoscope, pipe probe endoscope, vehicle detection endoscope, cylinder testing, video fishing camera, underwater camera, ENT endoscope, intraoral endoscope, medical endoscope, throat endoscope, etc.

The main advantages of this product are: small size, low power consumption, clear imaging.

Specifications

  • Sensor: 1/18” CMOS
  • Horizontal Line: 200TVL
  • Signal System: NTSC
  • Effective Pixel: 320 × 240
  • Electronic Shutter(AES): 1/60S - 1/170000S
  • AGC: Open
  • SNR: ≥42dB
  • Gradation: 10th rank
  • Gamma: 0.45
  • Illumination: > 0 Lux / F3.0 (0 Lux when the LED is on)
  • Composite Video Output: 1.0Vp-p 75Ω
  • Lens: F3.0, 54°
  • Focal distance: 10~50mm

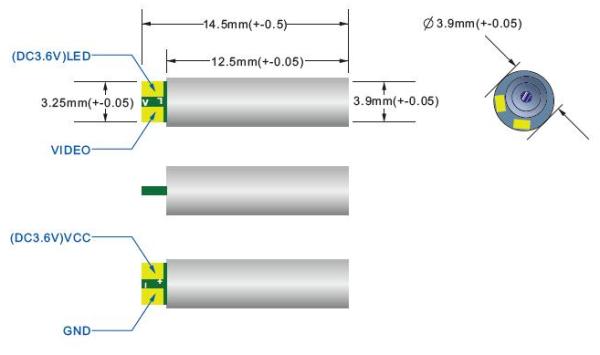

  • Module size: 3.9mm*15mm
  • Light: 2PCS white LED
  • Power: DC 3.5V~3.6V, less than 350mW
  • Operating temperature : -10 ℃ ~ 60 ℃ RH95% Max
