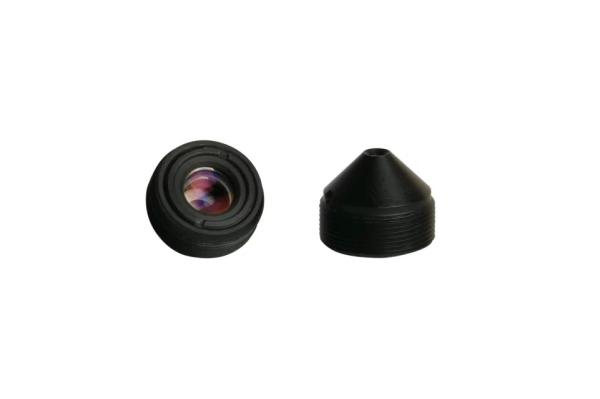

1/3 3.7mm F2.5 2Megapixel M12x0.5 Mount Sharp Cone Pinhole Lens for CMOS/CCD
1/3 3.7mm F2.5 2Megapixel M12x0.5 Mount Sharp Cone Pinhole Lens for CMOS/CCD
1/3 3.7mm F2.5 2Megapixel M12x0.5 Mount Sharp Cone Pinhole Lens for CMOS/CCD
1/3 3.7mm F2.5 2Megapixel M12x0.5 Mount Sharp Cone Pinhole Lens for CMOS/CCD
Specifications
Place of Origin :
China
Model Number :
13037PMP-2MP(A) / 13037PMP-2MP(B)
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
CCTV Lens :
M12 Mount Pinhole Lens
Focal Length :
3.7mm Pinhole Lens
Resolution :
2MP
Lens Constructure :
6G/6G+IR
Description

1/3" 3.7mm F2.5 2Megapixel S-Mount M12x0.5 mount Sharp Cone Pinhole Lens for covert cameras

Model 13037PMP-2MP(A)
SENSOR FORMAT 1/3”
FOCAL LENGTH 3.7mm ±5%
RESOLUTION 2MP
F.O.V. 92°(D)
APERTURE F2.5 ±5%
IRIS Fixed
M.O.D. 0.3m
MOUNT M12XP0.5 - 6g
B.F.L. 4.51mm ±5% (in air)
F.B.L. 3.71mm ±5%

T.T.L. 13.21mm ±5%
LENS CONSTRUCTURE 6G

DIMENSION Φ12x9.5mm

Model 13037PMP-2MP(B)
SENSOR FORMAT 1/3”
FOCAL LENGTH 3.7mm ±5%
RESOLUTION 2MP
F.O.V. 92°(D)
APERTURE F2.5 ±5%
IRIS Fixed
M.O.D. 0.3m
MOUNT M12XP0.5 - 6g
B.F.L. 4.0mm ±5% (in air)
F.B.L. 3.8mm ±5%

T.T.L. 11.0mm ±5%
LENS CONSTRUCTURE 3G

DIMENSION Φ12x7.2mm

Tips:
- IR-Cut filter available
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
