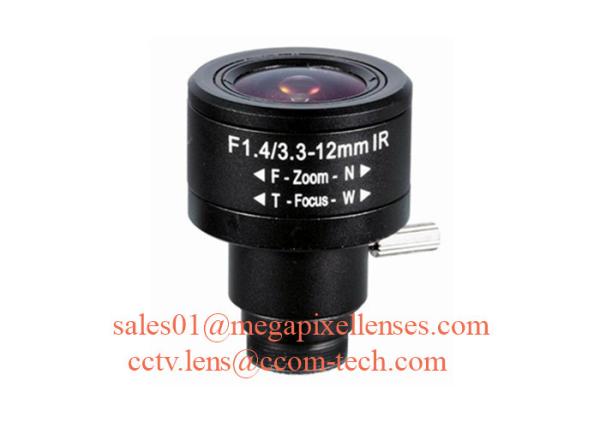

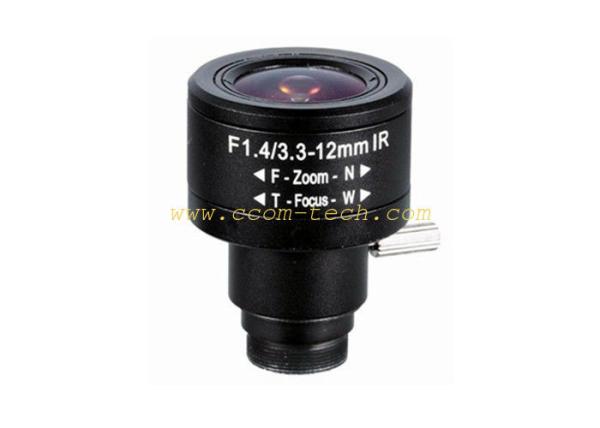

1/2.5 3.3-12mm F1.4 5MP/4K D14 Mount Fixed/DC Auto/P-IRIS Manual/Motorized Vari-focal Lens
1/2.5 3.3-12mm F1.4 5MP/4K D14 Mount Fixed/DC Auto/P-IRIS Manual/Motorized Vari-focal Lens
1/2.5 3.3-12mm F1.4 5MP/4K D14 Mount Fixed/DC Auto/P-IRIS Manual/Motorized Vari-focal Lens
1/2.5 3.3-12mm F1.4 5MP/4K D14 Mount Fixed/DC Auto/P-IRIS Manual/Motorized Vari-focal Lens
Specifications
Place of Origin :
China
Model Number :
3.3-12mm varifocal lens
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Board Lens :
Φ14 Mount Varifocal Lens
Focal Length :
1/2.5" 3.3-12mm
Resolution :
5MP/8MP(4K) option
Materials :
Plastic Barrel + Glass Lenses
Description

1/2.5" 3.3-12mm F1.4 5MP/8MP(4K) Φ14 mount Manual IRIS/Fixed IRIS/DC Auto IRIS/P-IRIS Manual/Motorized Zoom/Focus Varifocal Lens, IR/IR-Cut Series Vari-Focal Lenses for sensor MT9P006 etc.

IMAGE FORMAT 1/2.5”
FOCAL LENGTH 3.3~12mm
F.O.V (D/H/V) 117°-39°/93.5°-32°/68°-24°
RESOLUTION 5MP/8MP(4K)
APERTURE F1.4
MOUNT Φ14
IRIS FIXED/DC AUTO/P-IRIS
ZOOM Manual/Motorized(Stepping Motor)
FOCUS Manual/Motorized(Stepping Motor)
M.O.D. 0.1m

IR COLLECTION/IR-CUT OPTION
OPERATING TEMPERATURE -20℃～+60℃

ORDER INFO

Model Focal Length Image Format Description
12503312FM-5MP 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 5MP Fixed IRIS Manual Zoom Φ14 mount IR Varifocal Lens
12503312DM-5MP 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 5MP DC Auto IRIS Manual Zoom Φ14 mount IR Varifocal Lens
12503312PM-5MP 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 5MP P-IRIS Manual Zoom Φ14 mount IR Varifocal Lens
12503312FM-5MPF 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 5MP Fixed IRIS Manual Zoom Φ14 mount IR-CUT Varifocal Lens
12503312DM-5MPF 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 5MP DC Auto IRIS Manual Zoom Φ14 mount IR-CUT Varifocal Lens
12503312PM-5MPF 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 5MP P-IRIS Manual Zoom Φ14 mount IR-CUT Varifocal Lens
12503312MZ-FB-5MP 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 5MP Fixed IRIS Motorized Zoom/Focus Φ14 mount IR Varifocal Lens
12503312MZ-DB-5MP 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 5MP DC Auto IRIS Motorized Zoom/Focus Φ14 mount IR Varifocal Lens
12503312MZ-PB-5MP 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 5MP P-IRIS Motorized Zoom/Focus Φ14 mount IR Varifocal Lens
12503312MZ-FB-5MPF 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 5MP Fixed IRIS Motorized Zoom/Focus Φ14 mount IR-CUT Varifocal Lens
12503312MZ-DB-5MPF 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 5MP DC Auto IRIS Motorized Zoom/Focus Φ14 mount IR-CUT Varifocal Lens
12503312MZ-PB-5MPF 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 5MP P-IRIS Motorized Zoom/Focus Φ14 mount IR-CUT Varifocal Lens
12503312FM-4K 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 4K(8MP) Fixed IRIS Manual Zoom Φ14 mount IR Varifocal Lens
12503312DM-4K 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 4K(8MP) DC Auto IRIS Manual Zoom Φ14 mount IR Varifocal Lens
12503312PM-4K 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 4K(8MP) P-IRIS Manual Zoom Φ14 mount IR Varifocal Lens
12503312FM-4KF 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 4K(8MP) Fixed IRIS Manual Zoom Φ14 mount IR-CUT Varifocal Lens
12503312DM-4KF 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 4K(8MP) DC Auto IRIS Manual Zoom Φ14 mount IR-CUT Varifocal Lens
12503312PM-4KF 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 4K(8MP) P-IRIS Manual Zoom Φ14 mount IR-CUT Varifocal Lens
12503312MZ-FB-4K 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 4K(8MP) Fixed IRIS Motorized Zoom/Focus Φ14 mount IR Varifocal Lens
12503312MZ-DB-4K 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 4K(8MP) DC Auto IRIS Motorized Zoom/Focus Φ14 mount IR Varifocal Lens
12503312MZ-PB-4K 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 4K(8MP) P-IRIS Motorized Zoom/Focus Φ14 mount IR Varifocal Lens
12503312MZ-FB-4KF 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 4K(8MP) Fixed IRIS Motorized Zoom/Focus Φ14 mount IR-CUT Varifocal Lens
12503312MZ-DB-4KF 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 4K(8MP) DC Auto IRIS Motorized Zoom/Focus Φ14 mount IR-CUT Varifocal Lens
12503312MZ-PB-4KF 3.3-12mm 1/2.5" 1/2.5" 3.3-12mm F1.4 4K(8MP) P-IRIS Motorized Zoom/Focus Φ14 mount IR-CUT Varifocal Lens

Tips:

- IR-CUT: 650nm+AR IR-CUT filter switch

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
