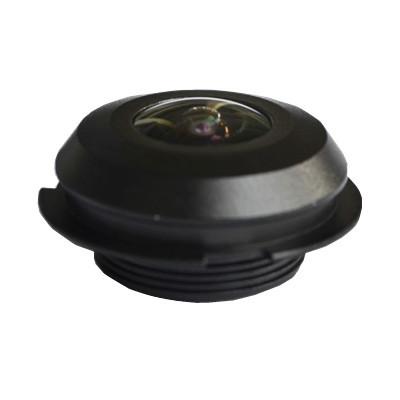

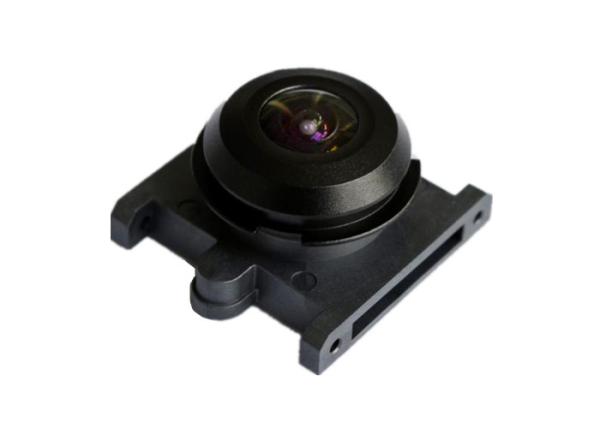

1/4 1.4mm 2Megapixel 1080P M12x0.5 Mount 180degree IR Fisheye Lens for OV2710, visual doorbell camera lens
1/4 1.4mm 2Megapixel 1080P M12x0.5 Mount 180degree IR Fisheye Lens for OV2710, visual doorbell camera lens
1/4 1.4mm 2Megapixel 1080P M12x0.5 Mount 180degree IR Fisheye Lens for OV2710, visual doorbell camera lens
1/4 1.4mm 2Megapixel 1080P M12x0.5 Mount 180degree IR Fisheye Lens for OV2710, visual doorbell camera lens
Specifications
Place of Origin :
China
Model Number :
14014MP 14014MPF
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Board Lens :
M12 Mount Fisheye Lens
Resolution :
2MP
FOV(D*H*V) :
180°*170°*99°
Materials :
Metal + Glass
Description

High Definition Fisheye Lens
● High resolution
● Various applications meet your requirements

● Compact design with cost-effective performance
● Custom design

● Super wide-angle with FOV up to 180° for panoramic surveillance
● Sharp image quality for multi-mega pixels cameras
● Suitable for various image frame
● IR cut option

1/4" 1.4mm F2.3 1080P 2Megapixel M12*0.5 mount S-mount 180degrees super wide angle IR Fisheye Lens for vehicle cctv cameras & visual doorbell, 1.4mm 1080P mini fisheye lens for 1/4"~1/6" sensors

MODEL 14014MP
IMAGE FORMAT 1/4" (image circle Φ 4.05mm, 1/6" Φ3.08mm)
FOCAL LENGTH(mm) 1.4
FOV(D*H*V): 1/4" 180°*170°*99°; 1/6" 131°*113°*62°
RESOLUTION 2MP
APERTURE 2.3
MOUNT(mm) M12x0.5
F-theta distortion -8%
Relative illumination: >49%
CRA: 6.8°
IRIS Fixed
B.F.L.(mm) 2.89
T.T.L.(mm) 11.55
M.O.D.: 0.05m
LENS DIMENSION Φ14*9.8mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- Waterproof version optional

- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
