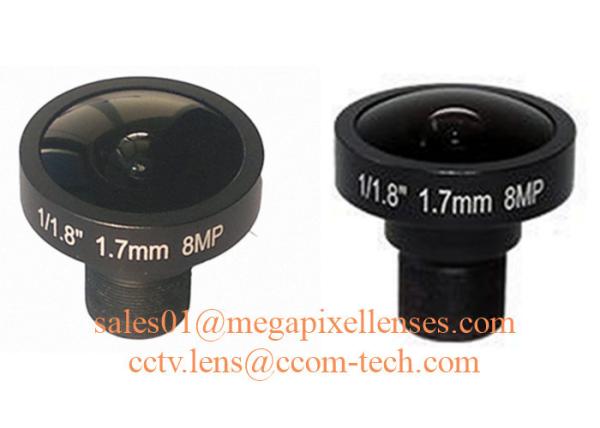

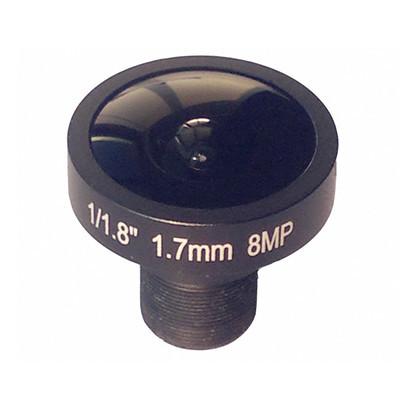

1/1.8 1.7mm 8Megapixel M12x0.5 mount 185degree Fisheye Lens for IMX178/IMX172/OV23850
1/1.8 1.7mm 8Megapixel M12x0.5 mount 185degree Fisheye Lens for IMX178/IMX172/OV23850
1/1.8 1.7mm 8Megapixel M12x0.5 mount 185degree Fisheye Lens for IMX178/IMX172/OV23850
1/1.8 1.7mm 8Megapixel M12x0.5 mount 185degree Fisheye Lens for IMX178/IMX172/OV23850
Specifications
Place of Origin :
China
Model Number :
118017MP 118017MPF
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Board lens :
M12 mount fisheye lens
Resolution :
4K/8MP
FOV :
185degree
Materials :
Metal + glass
Description

1/1.8" 1.7mm F2.0 8Megapixel M12X0.5 mount 185degrees IR Fisheye Lens for IMX178/IMX172/OV23850... sensors


MODEL 118017MP
IMAGE FORMAT 1/1.8"
FOCAL LENGTH(mm) 1.7 / Φ4.82mm@180°
F.O.V.(±5°) 1/1.8": 185°(D)*185°(H)*185°(V); 1/2": 185°(D)*185°(H)*180°(V); 1/2.5": 185°(D)*185°(H)*144°(V)
RESOLUTION 8MP
DISTORTION -97.51%
APERTURE F2.0
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.15
B.F.L.(mm) 5.38

M.B.F.(mm) 4.86
DIMENSION(mm) Φ26x25.8
IR Collection YES


Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
