1/13 0.8mm F4.0 M3.5×P0.25 endoscope lens, medical video equipment lens
1/13 0.8mm F4.0 M3.5×P0.25 endoscope lens, medical video equipment lens
1/13 0.8mm F4.0 M3.5×P0.25 endoscope lens, medical video equipment lens
1/13 0.8mm F4.0 M3.5×P0.25 endoscope lens, medical video equipment lens
1/13 0.8mm F4.0 M3.5×P0.25 endoscope lens, medical video equipment lens
1/13 0.8mm F4.0 M3.5×P0.25 endoscope lens, medical video equipment lens
Specifications
Place of Origin :
China
Model Number :
113080-03
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M3.5x0.25 mount endoscope lens
Resolution :
VGA
F.O.V(D*H*V) :
80°*68°*53.4°
Lens Constructure :
2P+IR
Description

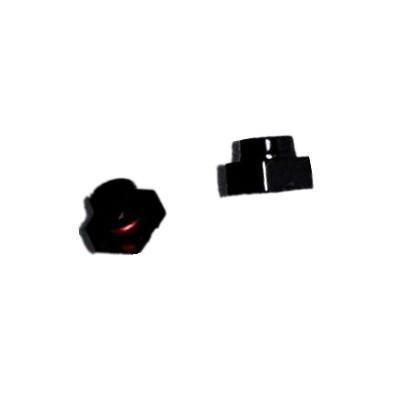

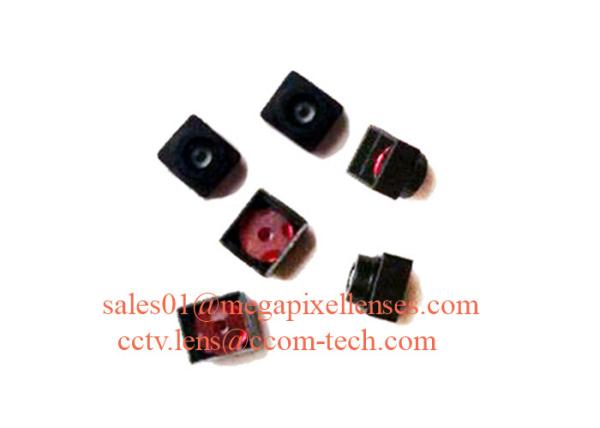

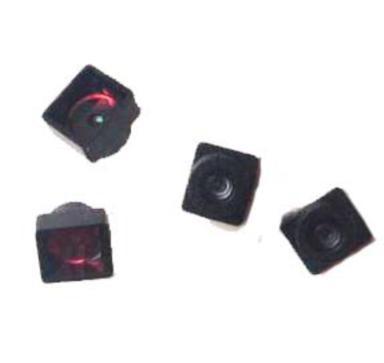

1/13" 0.8mm F4.0 M3.5×P0.25 Mount Endoscope Lens for 1/13" sensors, medical video equipment lens

(The lens barrel and holder are made together, which can not devided.)


This lens can be used on pipes, sewers, industrial inspection, endoscopes and other instruments.

Model: 113080-03
IMAGE FORMAT: 1/13"
FOCAL LENGTH: 0.8mm (±5%)
MAX IMAGE CIRCLE: Φ1.6mm
F.O.V: 80°(D)*68°(H)*53.4°(V)
RESOLUTION: VGA
OPTICAL DISTORTION: <2%
APERTURE: F4.0 (±5%)
MOUNT: M3.5XP0.25
B.F.L.: 1.385mm
M.O.D.: 0~50mm
T.T.L.: 2.86mm±0.05mm
LENS CONSTRUCTURE: 2P+IR

Please pay more attantion to the lens holder size (comparing with your sensor):

1/13

Tips: we also have medical lenses for 1/9", 1/10" and 1/18" sensors. For more info, please feel free to contact us by email cctv.lens@ccom-tech; sales01@megapixellenses.com
