1/13 0.8mm F4.0 M3.5×P0.25 medical endoscope lens, medical video equipment lens
1/13 0.8mm F4.0 M3.5×P0.25 medical endoscope lens, medical video equipment lens
1/13 0.8mm F4.0 M3.5×P0.25 medical endoscope lens, medical video equipment lens
1/13 0.8mm F4.0 M3.5×P0.25 medical endoscope lens, medical video equipment lens
1/13 0.8mm F4.0 M3.5×P0.25 medical endoscope lens, medical video equipment lens
1/13 0.8mm F4.0 M3.5×P0.25 medical endoscope lens, medical video equipment lens
1/13 0.8mm F4.0 M3.5×P0.25 medical endoscope lens, medical video equipment lens
1/13 0.8mm F4.0 M3.5×P0.25 medical endoscope lens, medical video equipment lens
Specifications
Place of Origin :
China
Model Number :
113080-0101
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M3.5x0.25 mount endoscope lens
Resolution :
VGA
F.O.V(D*H*V) :
80°*68°*53.4°
Lens Constructure :
2P+IR
Description

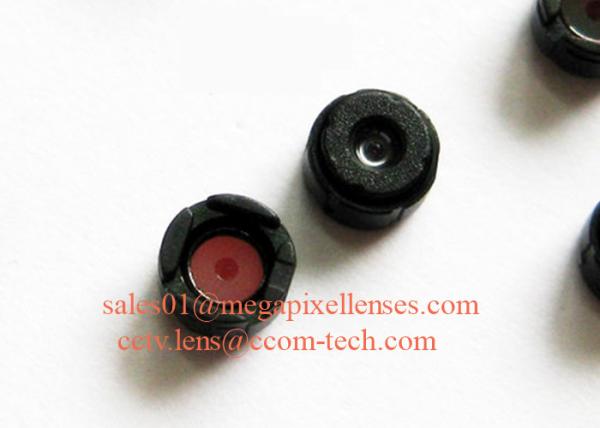

1/13" 0.8mm F4.0 M3.5×P0.25 Mount Medical Endoscope Lens for 1/13" sensors, medical video equipment lens


This lens can be used on pipes, sewers, industrial inspection, endoscopes and other instruments.


Model: 113080-0101
SENSOR FORMAT: 1/13"
FOCAL LENGTH: 0.8mm (±5%)
MAX IMAGE CIRCLE: Φ1.6mm
F.O.V: 80°(D)*68°(H)*53.4°(V)
RESOLUTION: VGA
OPTICAL DISTORTION: <2.0%
TV DISTORTION: <1.0%
APERTURE: F4.0 (±5%)
CHIEF RAY ANGLE: <20.2°
MOUNT: M3.5XP0.25
B.F.L.: 1.385mm
T.T.L.: 2.69mm±0.1mm
LENS CONSTRUCTURE: 2P+IR

Please pay more attantion to the lens holder size (comparing with your sensor):

1/13

Tips: we also have medical lenses for 1/9", 1/10" and 1/18" sensors. For more info, please feel free to contact us by email cctv.lens@ccom-tech; sales01@megapixellenses.com
