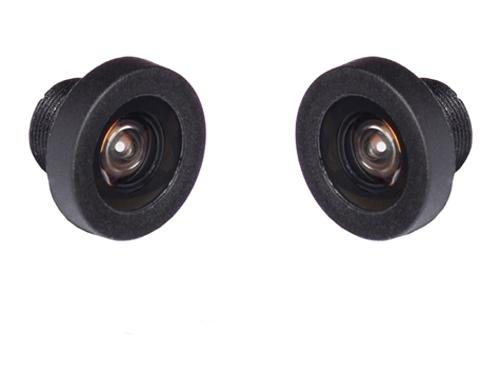

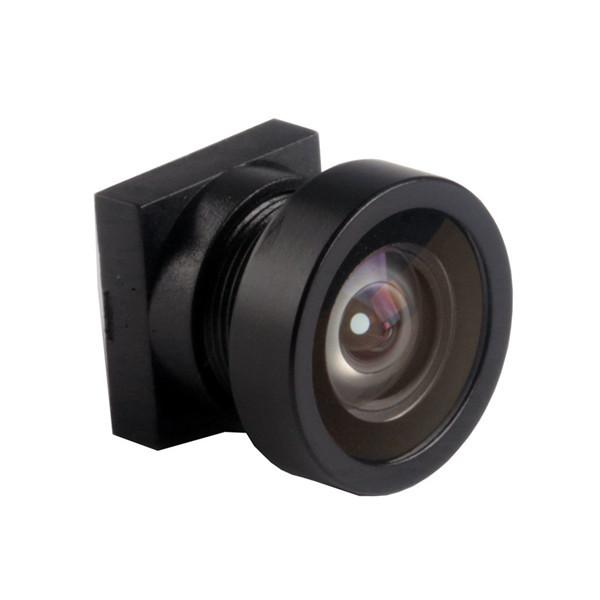

1/4 0.95mm F2.0 M7x0.35 mount 160° wide angle lens for Vehicle Rear-view mirror, lens for OV7725/OV7740
1/4 0.95mm F2.0 M7x0.35 mount 160° wide angle lens for Vehicle Rear-view mirror, lens for OV7725/OV7740
1/4 0.95mm F2.0 M7x0.35 mount 160° wide angle lens for Vehicle Rear-view mirror, lens for OV7725/OV7740
1/4 0.95mm F2.0 M7x0.35 mount 160° wide angle lens for Vehicle Rear-view mirror, lens for OV7725/OV7740
1/4 0.95mm F2.0 M7x0.35 mount 160° wide angle lens for Vehicle Rear-view mirror, lens for OV7725/OV7740
1/4 0.95mm F2.0 M7x0.35 mount 160° wide angle lens for Vehicle Rear-view mirror, lens for OV7725/OV7740
Specifications
Place of Origin :
China
Model Number :
14095-M7
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M7 Mount Wide Angle Lens
Resolution :
VGA/0.3MP
F.O.V.(D*H*V) :
160°*120°*100°
Constructure :
2P2G/2P2G+IR
Description

1/4" 0.95mm F2.0 M7x0.35 Mount VGA Lens, 160degree Wide Angle Lens for vehicle rear-view mirror, M7 lens for OV7740/OV7725, M7/M8/M12 mount option

MODEL 14095-M7
IMAGE FORMAT 1/4"
FOCAL LENGTH(EFL) 0.95mm
F.O.V (D*H*V) 160°*120°*100°
DISTORTION <-8.5%
APERTURE F2.0
RESOLUTION VGA
MOUNT M7XP0.35
IRIS Fixed

M.O.D. 20cm
B.F.L. 2.11mm
F.B.L. 1.66mm
T.T.L. 9.30mm
DIMENSION Φ10×7.63mm
LENS COMPOMENT 2P2G+IR
CUT FREQUENCY AT 50% 650±10nm

Tips:

- ***F: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional. F: with IR filter

- Waterproof version is optional.

- M12/M8/M7 mount option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
