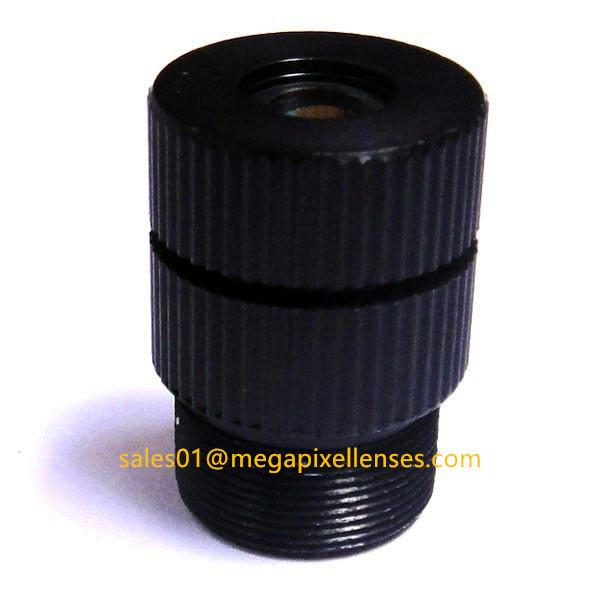

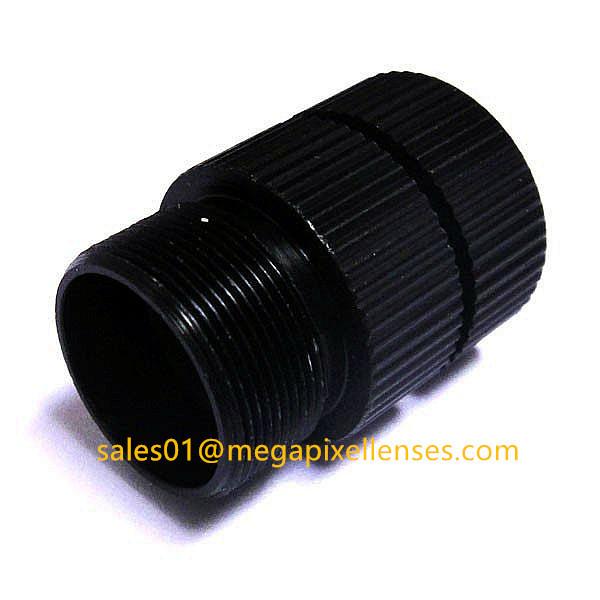

1/3 25mm F2.0 M12x0.5 mount low distortion board lens for 1/3 or 1/4 CCD sensor, 25mm CCTV lens
1/3 25mm F2.0 M12x0.5 mount low distortion board lens for 1/3 or 1/4 CCD sensor, 25mm CCTV lens
1/3 25mm F2.0 M12x0.5 mount low distortion board lens for 1/3 or 1/4 CCD sensor, 25mm CCTV lens
1/3 25mm F2.0 M12x0.5 mount low distortion board lens for 1/3 or 1/4 CCD sensor, 25mm CCTV lens
1/3 25mm F2.0 M12x0.5 mount low distortion board lens for 1/3 or 1/4 CCD sensor, 25mm CCTV lens
1/3 25mm F2.0 M12x0.5 mount low distortion board lens for 1/3 or 1/4 CCD sensor, 25mm CCTV lens
1/3 25mm F2.0 M12x0.5 mount low distortion board lens for 1/3 or 1/4 CCD sensor, 25mm CCTV lens
1/3 25mm F2.0 M12x0.5 mount low distortion board lens for 1/3 or 1/4 CCD sensor, 25mm CCTV lens
Specifications
Place of Origin :
China
Model Number :
132520-M12 132520F-M12
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M12 Mount Board Lens
Resolution :
0.3MP
F.O.V.(D) :
20degree
Materials :
Glasses + Metal
Description
1/3" 25mm F2.0 M12x0.5 mount low distortion board lens for 1/3" or 1/4" CCD sensor, 25mm CCTV lens
MODEL 132520MP-M12
IMAGE FORMAT 1/3" & 1/4" CCD
FOCAL LENGTH 25mm±5%
F.O.V.(D) 20°
RESOLUTION 0.3MP
OPTICAL DISTORTION <1.5%
APERTURE F2.0
MOUNT M12X0.5
BACK FOCUA 20.4mm
FLANGE BACK FOCUS 6.55mm±5%
LENS COMPONENT 4G
DIMENSION Φ14*17.1mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- CS mount available

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
