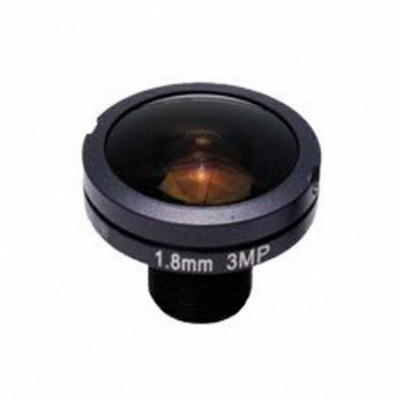

1/1.8 1.8mm 3Megapixel M12x0.5 mount 185degree Fisheye Lens for 1/1.8 1/2.7 1/3.6 sensors
1/1.8 1.8mm 3Megapixel M12x0.5 mount 185degree Fisheye Lens for 1/1.8 1/2.7 1/3.6 sensors
1/1.8 1.8mm 3Megapixel M12x0.5 mount 185degree Fisheye Lens for 1/1.8 1/2.7 1/3.6 sensors
1/1.8 1.8mm 3Megapixel M12x0.5 mount 185degree Fisheye Lens for 1/1.8 1/2.7 1/3.6 sensors
1/1.8 1.8mm 3Megapixel M12x0.5 mount 185degree Fisheye Lens for 1/1.8 1/2.7 1/3.6 sensors
1/1.8 1.8mm 3Megapixel M12x0.5 mount 185degree Fisheye Lens for 1/1.8 1/2.7 1/3.6 sensors
Specifications
Place of Origin :
China
Model Number :
118018MP 118018MPF
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Board lens :
M12 mount fisheye lens
Resolution :
3MP
FOV :
185degree
Materials :
Metal + glass
Description

1/1.8" 1.8mm F2.8 3Megapixel M12X0.5 mount 185degrees IR Fisheye Lens for 1/1.8" 1/2.7" 1/3.6" sensors, 1.8mm S-mount panoramic camera lens

MODEL 118018MP
IMAGE FORMAT 1/1.8"
FOCAL LENGTH(mm) 1.8
MAX IMAGE CIRCLE Φ5.3mm
F.O.V. 1/1.8": 185°(D)*185°(H)*185°(V); 1/2.7": 185°(D)*185°(H)*148°(V); 1/3.6": 185°(D)*148°(H)*111°(V)
RESOLUTION 3MP
DISTORTION -100%
APERTURE F2.8
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.3
B.F.L.(mm) 4.3
M.B.F.(mm) 4.1
DIMENSION(mm) Φ26x21.7
IR Collection YES


Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
