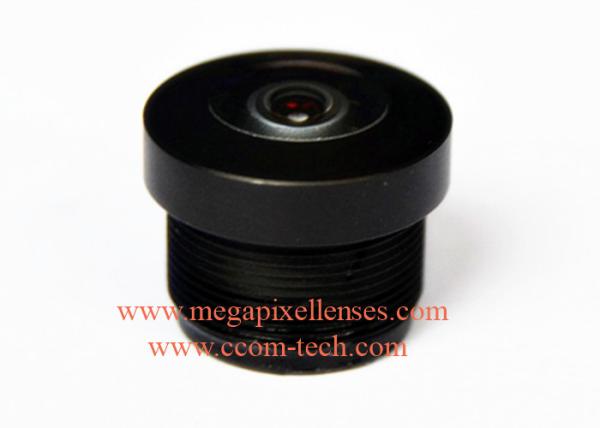

1/2.7 2.3mm F2.5 3Megapixel M12x0.5 Mount 200degree Fisheye Lens, 360D panoramic lens
1/2.7 2.3mm F2.5 3Megapixel M12x0.5 Mount 200degree Fisheye Lens, 360D panoramic lens
1/2.7 2.3mm F2.5 3Megapixel M12x0.5 Mount 200degree Fisheye Lens, 360D panoramic lens
1/2.7 2.3mm F2.5 3Megapixel M12x0.5 Mount 200degree Fisheye Lens, 360D panoramic lens
Specifications
Place of Origin :
China
Model Number :
127023MP 127023MPF
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Video Lens :
M12 mount panoramic lens
Resolution :
3MP
F.O.V.(D*H*V) :
1/2.7" 200°*158°*105°, 1/3" 170°*125°*95°
Lens Constructure :
6G/6G+IR
Description

1/2.7" 2.3mm F2.5 3Megapixel M12x0.5 Mount 200degree Wide Angle Fisheye Lens for panoramic cameras, 360D panoramic lens

Model 127023MPF
SENSOR FORMAT 1/2.7”
FOCAL LENGTH 2.3mm±5%
RESOLUTION 3MP
F.O.V.(D*H*V) 1/2.7" 200°*158°*105°, 1/3" 170°*125°*95°
APERTURE F2.5
DISTORTION <30%
IRIS Fixed
M.O.D. 5cm
MOUNT M12XP0.5
B.F.L. 4.2mm ±5% (in air)
F.B.L. 3.9mm ±5%
T.T.L. 14.8mm
LENS CONSTRUCTURE 6G+IR filter
DIMENSION Φ14x10.9mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
