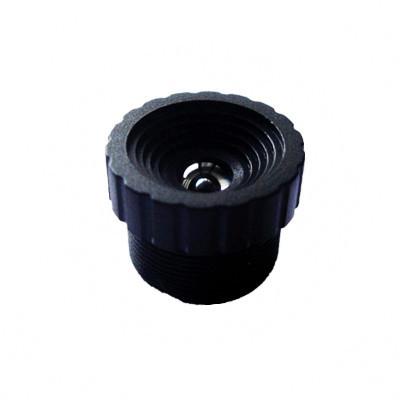

1/4 3.1mm F2.6 Megapixel M12x0.5 mount non-distortion board lens, S mount scanner lens
1/4 3.1mm F2.6 Megapixel M12x0.5 mount non-distortion board lens, S mount scanner lens
1/4 3.1mm F2.6 Megapixel M12x0.5 mount non-distortion board lens, S mount scanner lens
1/4 3.1mm F2.6 Megapixel M12x0.5 mount non-distortion board lens, S mount scanner lens
Specifications
Model Number :
14031MPF
MOQ :
100pcs
Packaging Details :
Standard
Delivery Time :
2-7 work days
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Place of Origin :
China
Brand Name :
CCOM LENS
Board Lens :
M12 Mount Low-distortion Lens
Resolution :
Megapixel
Distortion :
<-2.1%
Constructure :
2G2P/2G2P+IR
Description
1/4" 3.1mm F2.6 1.3Megapixel M12x0.5 mount non-distortion board lens, S mount scanner lens
Model 14031MPF
IMAGE FORMAT 1/4"
MAX IMAGE CIRCLE Φ5.0mm 1.3MP
WAVELRNGTH λ = 400-700nm (COLOR)
FOCAL LENGTH 3.1mm
F.O.V 80°(D)
RESOLUTION 1.3MP
OPTICAL DISTORTION <-2.1%
APERTURE F2.6
MOUNT M12X0.5P
MOD 0.3m
BFL 4.03mm
FBL 2.56mm
TTL 13.06mm
Dimension Φ14x10.5mm
CONSTRUCTION 4E+IR (2G+2P+1R)

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
