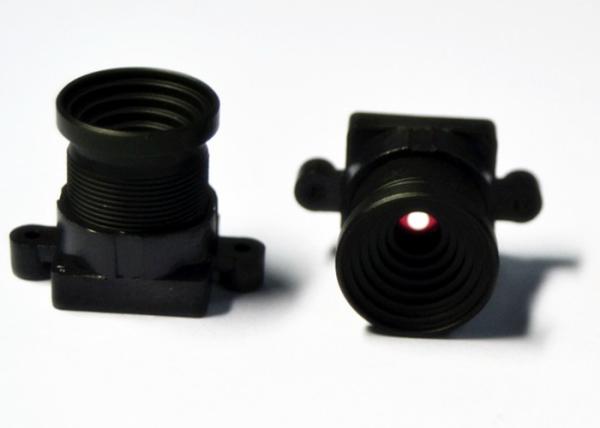

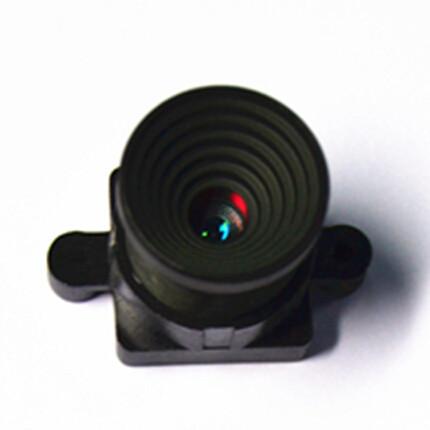

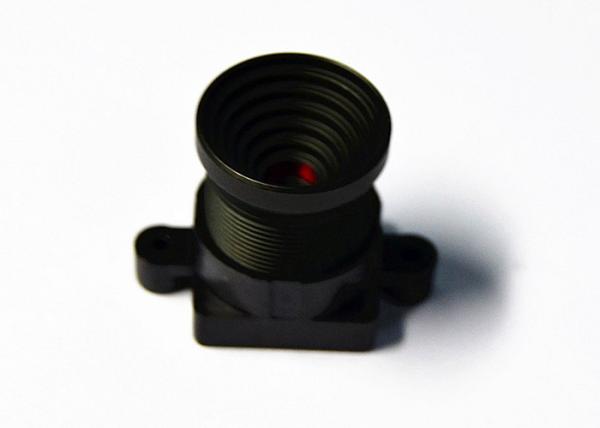

1/3 7.3mm F2.6 3Megapixel M12x0.5 S Mount Non-Distortion Board Lens, 7.3 mm scanner lens
1/3 7.3mm F2.6 3Megapixel M12x0.5 S Mount Non-Distortion Board Lens, 7.3 mm scanner lens
1/3 7.3mm F2.6 3Megapixel M12x0.5 S Mount Non-Distortion Board Lens, 7.3 mm scanner lens
1/3 7.3mm F2.6 3Megapixel M12x0.5 S Mount Non-Distortion Board Lens, 7.3 mm scanner lens
1/3 7.3mm F2.6 3Megapixel M12x0.5 S Mount Non-Distortion Board Lens, 7.3 mm scanner lens
1/3 7.3mm F2.6 3Megapixel M12x0.5 S Mount Non-Distortion Board Lens, 7.3 mm scanner lens
1/3 7.3mm F2.6 3Megapixel M12x0.5 S Mount Non-Distortion Board Lens, 7.3 mm scanner lens
1/3 7.3mm F2.6 3Megapixel M12x0.5 S Mount Non-Distortion Board Lens, 7.3 mm scanner lens
Specifications
Place of Origin :
China
Model Number :
13073MP 13073MPF
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Board Lens :
M12 Mount Low-distortion Lens
Resolution :
3MP
Distortion :
<-1%
Lens Constructure :
4P/4P+IR
Description

1/3" 7.3mm F2.6 5Megapixel M12 S-mount non-distortion lens for scanners/HD cameras

Model: 13073MPF
SENSOR FORMAT 1/3"
MAX IMAGE CIRCLE Φ8.2mm
FOCAL LENGTH(EFL) 7.3mm
F.O.V.: 65° (Φ6mm)
RESOLUTION 3MP
APERTURE F2.6
OPTICAL DISTORTION <-1%
MOUNT M12X0.5 (M9 mount optional)
F.B.L.: 2.1mm
T.T.L. 15.1mm
LENS CONSTRUCTURE 4P+IR
RELATIVE ILLUMINATION >65% (Φ4.5mm)
IR COATING 645+/-10NM AT:50%
CHIEF RAT ANGLE <25°

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M12/M9 option

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
