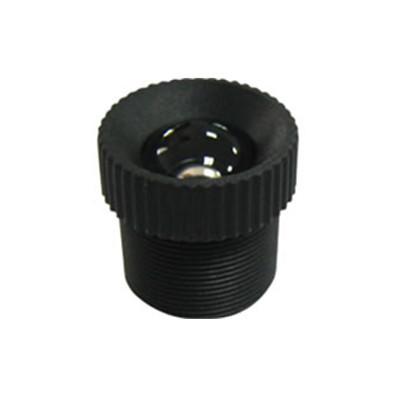

1/1.8 12mm 4K Megapixel F1.8 S Mount M12x0.5 Non-Distortion Board Lens, 12mm M12 Rectilinear Lens
1/1.8 12mm 4K Megapixel F1.8 S Mount M12x0.5 Non-Distortion Board Lens, 12mm M12 Rectilinear Lens
1/1.8 12mm 4K Megapixel F1.8 S Mount M12x0.5 Non-Distortion Board Lens, 12mm M12 Rectilinear Lens
1/1.8 12mm 4K Megapixel F1.8 S Mount M12x0.5 Non-Distortion Board Lens, 12mm M12 Rectilinear Lens
1/1.8 12mm 4K Megapixel F1.8 S Mount M12x0.5 Non-Distortion Board Lens, 12mm M12 Rectilinear Lens
1/1.8 12mm 4K Megapixel F1.8 S Mount M12x0.5 Non-Distortion Board Lens, 12mm M12 Rectilinear Lens
1/1.8 12mm 4K Megapixel F1.8 S Mount M12x0.5 Non-Distortion Board Lens, 12mm M12 Rectilinear Lens
1/1.8 12mm 4K Megapixel F1.8 S Mount M12x0.5 Non-Distortion Board Lens, 12mm M12 Rectilinear Lens
1/1.8 12mm 4K Megapixel F1.8 S Mount M12x0.5 Non-Distortion Board Lens, 12mm M12 Rectilinear Lens
1/1.8 12mm 4K Megapixel F1.8 S Mount M12x0.5 Non-Distortion Board Lens, 12mm M12 Rectilinear Lens
Specifications
Place of Origin :
China
Model Number :
1181218MP 1181218MPF
Packaging Details :
Standard
Delivery Time :
3-15 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Board Lens :
M12 Mount Low-distortion Lens
Resolution :
5MP (suitable for 10MP sensor)
Distortion :
<-1.0%
Materials :
Metal + Glass, 7G/7G+IR
Description

Non distortion Lens

● High definition <2% low distortion lens
● High resolution compatible with 1.3-10 Mega-pixel cameras
● Broad band confocal design suitable for both Visible and NIR applications
● Compact design ideal for integration
● Cost-effective for recognition applications

1/1.8" 12mm 4K Megapixel F1.8 M12*0.5 Mount S Mount High Quality Non-Distortion IR/IRCUT Board Lens Rectilinear Lens for 1/1.8" 1/2" etc., suitable for 5MP/4K/10MP+ HD sensors, 12mm 4K lens for Gopro Hero 4, can be mounted on 4K Gopro Hero 5/6/7 special version.

Model 1181218MP
Image Format 1/1.8″
Focal Length 12mm
Aperture F1.8
Resolution 5MP-10MP
Horizontal Angle of View 33.6°
Optical Distortion -1.0%
Mount Type M12*0.5

IRIS Fixed
Minimum Object Distance 0.3m

Back Focal Length 5.99mm

T.T.L. 25.35mm
Constructure 7-5
External Dimensions(mm) Φ15(D)*19.2(L)

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- CS mount available

- able to match 10MP sensors

- For more lenses, please feel free to contact us at sales01@megapixellenses.com
