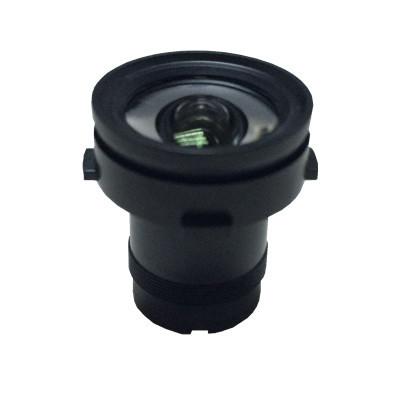

1/2.7 2.8mm 3Megapixel M12x0.5 mount low-distortion board lens for OV2710/AR0330
1/2.7 2.8mm 3Megapixel M12x0.5 mount low-distortion board lens for OV2710/AR0330
1/2.7 2.8mm 3Megapixel M12x0.5 mount low-distortion board lens for OV2710/AR0330
1/2.7 2.8mm 3Megapixel M12x0.5 mount low-distortion board lens for OV2710/AR0330
1/2.7 2.8mm 3Megapixel M12x0.5 mount low-distortion board lens for OV2710/AR0330
1/2.7 2.8mm 3Megapixel M12x0.5 mount low-distortion board lens for OV2710/AR0330
1/2.7 2.8mm 3Megapixel M12x0.5 mount low-distortion board lens for OV2710/AR0330
1/2.7 2.8mm 3Megapixel M12x0.5 mount low-distortion board lens for OV2710/AR0330
Specifications
Place of Origin :
China
Model Number :
127028MPF-M12
Packaging Details :
Standard
Delivery Time :
2-7 work days
Supply Ability :
Samples available
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Brand Name :
CCOM LENS
MOQ :
100pcs
Board Lens :
M12 Mount Low-distortion Lens
Resolution :
3MP~8MP
Distortion :
<-1%
Lens Constructure :
6E+IR
Description
1/2.7" 2.8mm 3Megapixel F2.0 M12xP0.5 mount low-distortion IR-CUT board lens, 2.8mm non-distortion video lens for OV2710/AR0330, special megapixel low-distortion lens for scanner
MODEL: 127028MPF-M12
IMAGE FORMAT 1/2.7" (suitable for OV2710/AR0330)
FOCAL LENGTH(mm) 2.8
FOV(D*H*V) 1/2.7" 100°*93°*62°, 1/3" 94°*84°*62°
RESOLUTION 3MP
APERTURE 2.0
TV DISTORTION <-1%
MOUNT(mm) M12x0.5
IRIS Fixed
FBL(mm) 1.51
Total Length(mm) 22.4
C.R.A. <16°
R.I. >65%
CONSTRUCTION 6E+IR
MODEL: 127027MPF-M13 (Old version)
IMAGE FORMAT 1/2.7" (suitable for OV2710)
FOCAL LENGTH(mm) 2.7
FOV(D*H*V): 100°*93°*62°
RESOLUTION 8MP
APERTURE 2.0
TV DISTORTION <-1%
MOUNT(mm) M13x0.35
IRIS Fixed
FBL(mm) 1
Total Length(mm) 22
CONSTRUCTION 6E+IR
Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
