2/3 8mm/12mm F2.4 5MP Manual IRIS C Mount Industrial FA Lens for 2/3, 1/1.8, 1/2, 1/2.9
2/3 8mm/12mm F2.4 5MP Manual IRIS C Mount Industrial FA Lens for 2/3, 1/1.8, 1/2, 1/2.9
Specifications
Brand Name :
CCOM LENS
Model Number :
230824MP-FA 231224MP-FA
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Industrial Lens :
Fixed Focal C Mount FA Lens
Resolution :
5MP
IRIS :
Manual
IR Collection :
Yes
Description

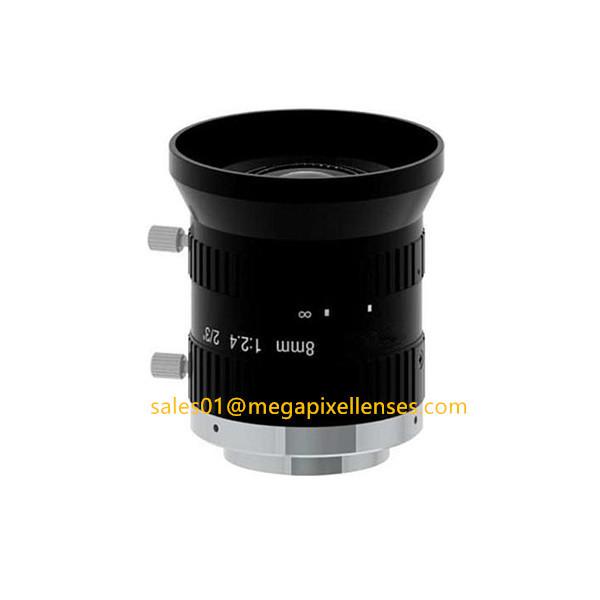

2/3" 8mm/12mm F2.4 Megapixel 5MP C Mount Industrial FA Lens, 8mm/12mm 5MP TV Lens

MODEL 230824MP-FA
IMAGE FORMAT 2/3”
Max. Image Circle 8.8mm×6.6mm(φ11mm)
FOCAL LENGTH 8mm
F.O.V. (DxHxV) 2/3”: 69.6°x58.3°x45.4°, 1/1.8”: 59.4°x49.1°x37.6°, 1/2”: 54°x44.2°x33.6°, 1/2.9”: 43.5°x35°x26.9°
RESOLUTION 5MP
APERTURE F2.4~F16
Operation range of Focus 100mm-Inf.
TV DISTORTION -0.64% (WD=300mm)
MOUNT C
IRIS Manual
ZOOM Manual
FOCUS Manual
Object Dimension at M.O.D 353mm×265mm 2/3"
F.B.F. 17.526mm
B.F.L. ≤12.2mm
Working Distance
WEIGHT 102.4g
DIMENSION Φ42mm×50.5mm

MODEL 231224MP-FA
IMAGE FORMAT 2/3”
Max. Image Circle 8.8mm×6.6mm(φ11mm)
FOCAL LENGTH 12mm
F.O.V. (DxHxV) 2/3”: 48.3°x39.6°x30.2°, 1/1.8”: 40.4°x32.8°x24.9°, 1/2”: 36.3°x29.4°x22.2°, 1/2.9”: 28.9°x23.1°x17.7°
RESOLUTION 5MP
APERTURE F2.4~F16
Operation range of Focus 100mm-Inf.
TV DISTORTION -0.1% (WD=300mm)
MOUNT C
IRIS Manual
ZOOM Manual
FOCUS Manual
Object Dimension at M.O.D 300mm×200mm 2/3"
F.B.F. 17.526mm
B.F.L. ≤16.8mm
T.T.L. ≤50.8mm
WEIGHT 71.1g
DIMENSION Φ29mm×40.1mm
