2/3 16mm/25mm/35mm F1.8 5MP Manual IRIS C Mount Industrial FA Lens for 2/3, 1/1.8, 1/2, 1/2.9
2/3 16mm/25mm/35mm F1.8 5MP Manual IRIS C Mount Industrial FA Lens for 2/3, 1/1.8, 1/2, 1/2.9
Specifications
Brand Name :
CCOM LENS
Model Number :
231618MP-FA 232518MP-FA 233518MP-FA
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Industrial Lens :
Fixed Focal C Mount FA Lens
Resolution :
5MP
IRIS :
Manual
IR Collection :
Yes
Description

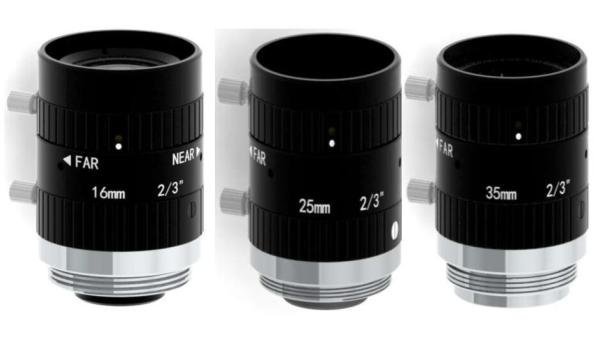

2/3" 16mm/25mm/35mm F1.8 Megapixel 5MP C Mount Industrial FA Lens, 16mm/25/35mm 5MP TV Lens

Model 231618MP-FA
IMAGE FORMAT 2/3”
Max. Image Circle 8.8mm×6.6mm(φ11mm)
FOCAL LENGTH 16mm
F.O.V. (DxHxV) 2/3”: 37.9°x30.8°x23.3°, 1/1.8”: 31.4°x25.4°x19.2°, 1/2”: 28.1°x22.6°x17.1°, 1/2.9”: 22.4°x19.1°x12°
RESOLUTION 5MP
APERTURE F1.8~F16
Operation range of Focus 200mm-Inf.
TV DISTORTION -0.58% (WD=300mm)
MOUNT C
IRIS Manual
ZOOM Manual
FOCUS Manual
Object Dimension at M.O.D 114mm×85mm 2/3"
F.B.F. 17.526mm
B.F.L. 10.53mm
WEIGHT 74.4g
DIMENSION Φ29mm×45.4mm
Operating Temperature -20℃ ~ 70℃; 10～90%RH

Model 232518MP-FA
IMAGE FORMAT 2/3”
Max. Image Circle 8.8mm×6.6mm(φ11mm)
FOCAL LENGTH 25mm
F.O.V. (DxHxV) 2/3”: 23°x18.4°x13.9°, 1/1.8”: 18.8°x15°x11.4°, 1/2”: 17°x13.5°x10.1°, 1/2.9”: 13.1°x10.5°x8°
RESOLUTION 5MP
APERTURE F1.8~F16
Operation range of Focus 200mm-Inf.
TV DISTORTION -0.30% (WD=300mm)
MOUNT C
IRIS Manual
ZOOM Manual
FOCUS Manual
Object Dimension at M.O.D 103mm×77mm 2/3"
F.B.F. 17.526mm
B.F.L. 13.2mm
WEIGHT 62g
DIMENSION Φ29mm×37.3mm
Operating Temperature -20℃ ~ 70℃; 10～90%RH

Model 233518MP-FA
IMAGE FORMAT 2/3”
Max. Image Circle 8.8mm×6.6mm(φ11mm)
FOCAL LENGTH 35mm
F.O.V. (DxHxV) 2/3”: 16.1°x13°x9.8°, 1/1.8”: 13.2°x10.7°x8.1°, 1/2”: 11.8°x9.5°x7.2°, 1/2.9”: 9.4°x7.5°x5.7°
RESOLUTION 5MP
APERTURE F1.8~F16
Operation range of Focus 200mm-Inf.
TV DISTORTION -0.006% (WD=300mm)
MOUNT C
IRIS Manual
ZOOM Manual
FOCUS Manual
Object Dimension at M.O.D 300mm×200mm 2/3"
F.B.F. 17.526mm
B.F.L. 15.4mm(WD=300mm)
WEIGHT 71g
DIMENSION Φ29mm×39.42mm
Operating Temperature -20℃ ~ 70℃

Tips:
