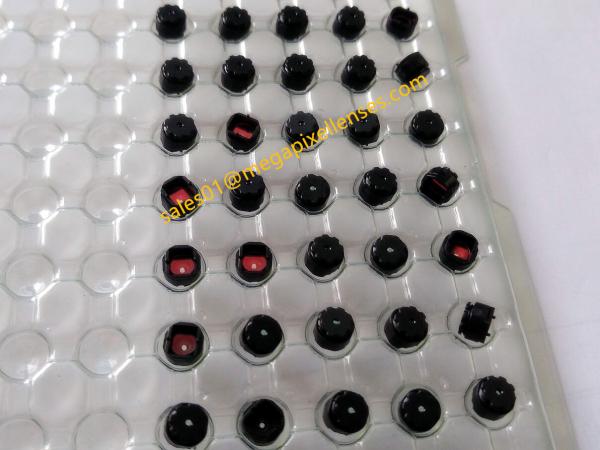

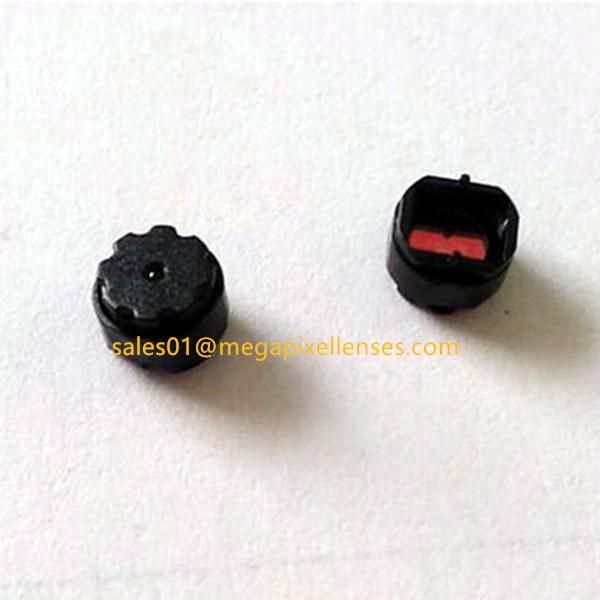

1/9 1.8mm F2.8 M4xP0.3 micro endoscope lens for SP0A19/GC0313/BF3903, cheap medical video lens
1/9 1.8mm F2.8 M4xP0.3 micro endoscope lens for SP0A19/GC0313/BF3903, cheap medical video lens
1/9 1.8mm F2.8 M4xP0.3 micro endoscope lens for SP0A19/GC0313/BF3903, cheap medical video lens
1/9 1.8mm F2.8 M4xP0.3 micro endoscope lens for SP0A19/GC0313/BF3903, cheap medical video lens
1/9 1.8mm F2.8 M4xP0.3 micro endoscope lens for SP0A19/GC0313/BF3903, cheap medical video lens
1/9 1.8mm F2.8 M4xP0.3 micro endoscope lens for SP0A19/GC0313/BF3903, cheap medical video lens
Specifications
Brand Name :
CCOM LENS
Model Number :
M4-19018
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Video Lens :
M4 mount endoscope lens
Resolution :
VGA
F.O.V(D*H*V) :
62°*49.6°*37.2°
Lens Constructure :
2P+IR
Description

1/9" 1/10" 1.8mm F2.8 M4xP0.3 micro medical lens endoscope lens for SP0A19/GC0313/BF3903, cheap medical video equipment lens for CMOS SENSORS


This lens can be used on pipes, sewers, industrial inspection, endoscopes and other instruments.

MODEL M4-19018
IMAGE FORMAT 1/9" CMOS
SENSOR SP0A19/GC0313/BF3903
FOCAL LENGTH 1.8mm (±5%)
MAX IMAGE CIRCLE Φ2.3mm
F.O.V(D*H*V) 62°*49.6°*37.2°
APERTURE F2.8 (±5%)

OPTICAL DISTORTION <2%
TV DISTORTION <0.63%
MOUNT M4XP0.3
B.F.L. 0.79mm(INFINITY), 0.795mm(0.4m). (including 0.21mm IR cut & 0.4mm cover glass)

F.B.L. 0.58mm(INFINITY), 0.585mm(0.4m). (including 0.21mm IR cut & 0.4mm cover glass)
T.T.L. 2.2±0.1mm (including 0.21mm IR cut & 0.4mm cover glass)

R.I. >60.5%

C.R.A. <31°
LENS CONSTRUCTURE 2P+IR filter

Tips: we also have medical lenses for 1/13" and 1/18" sensors. For more info, please feel free to contact us by email cctv.lens@ccom-tech; sales01@megapixellenses.com.
