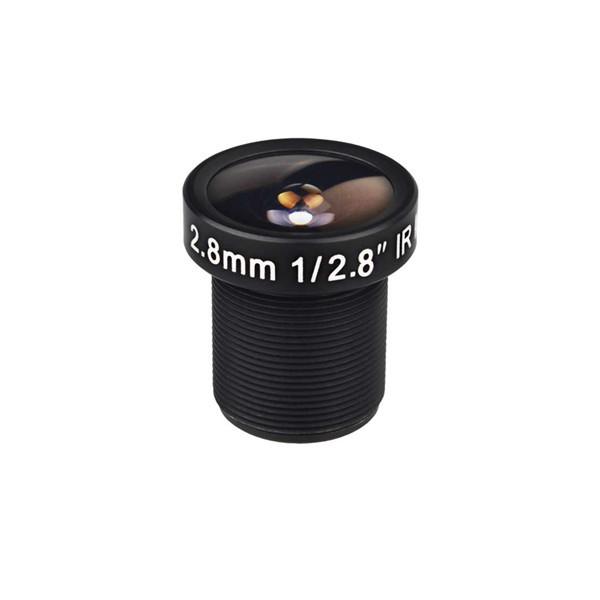

1/2.8 2.8mm F2.0 4Megapixel M12x0.5 Mount 142degree Wide Angle Lens for AR0237/OV4689
1/2.8 2.8mm F2.0 4Megapixel M12x0.5 Mount 142degree Wide Angle Lens for AR0237/OV4689
1/2.8 2.8mm F2.0 4Megapixel M12x0.5 Mount 142degree Wide Angle Lens for AR0237/OV4689
1/2.8 2.8mm F2.0 4Megapixel M12x0.5 Mount 142degree Wide Angle Lens for AR0237/OV4689
1/2.8 2.8mm F2.0 4Megapixel M12x0.5 Mount 142degree Wide Angle Lens for AR0237/OV4689
1/2.8 2.8mm F2.0 4Megapixel M12x0.5 Mount 142degree Wide Angle Lens for AR0237/OV4689
Specifications
Brand Name :
CCOM LENS
Model Number :
128028MP 128028MPF
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Video Lens :
M12 Mount Board Lens
Resolution :
4MP
FOV(D*H*V) :
142.5°*122°*66.4°
Lens Constructure :
6G/6G+IR
Description

High Definition Wide-Angle Lens
● Multi-mega pixels up to 4MP
● IR-collection for Day & Night surveillance, IR Cut options

● Super wide-angle with HFOV up to 122°

● Glass elements and metal housing
● IR cut option
● Mount option: CS/M12x0.5

1/2.8" 2.8mm F2.0 4Megapixel M12*0.5 mount S-mount 142.5degrees wide angle Lens, M12/CS option, wide angle lens for RGBIR sensor, 2.8mm cctv lens for AR0237/OV4689

Model 128028MPF
IMAGE FORMAT 1/2.8"
SENSOR CCD/CMOS
FOCAL LENGTH 2.8mm
F.O.V.(D*H*V) AR0237: 142.5°*122°*66.4°, OV4689: 134°*112.6°*61.8°
APERTURE F2.0
EFFECTIVE APERTURE Φ10.8mm(front), Φ5.5mm(rear)
TV DISTORTION -38.3%
R.I. >40%

C.R.A. <13°
IRIS Fixed
M.O.D. 0.3m
MOUNT M12XP0.5 - 6g
B.F.L. 5.65mm (with 0.3mm filter + 0.4mm C.G.)

T.T.L. 21.48mm (with 0.3mm filter + 0.4mm C.G.)
LENS CONSTRUCTURE 6-5
DIMENSION Φ14*16.7mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- CS mount available

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
