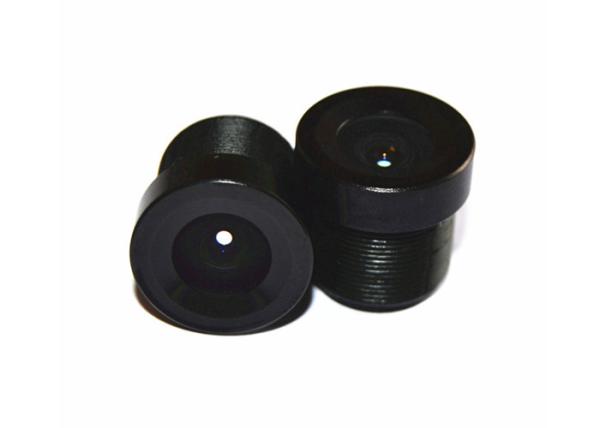

1/4 2.8mm F2.4/F2.0 Megapixel M12x0.5 mount board lens for JX-H42/OV9712, 2.8mm cctv lens
1/4 2.8mm F2.4/F2.0 Megapixel M12x0.5 mount board lens for JX-H42/OV9712, 2.8mm cctv lens
1/4 2.8mm F2.4/F2.0 Megapixel M12x0.5 mount board lens for JX-H42/OV9712, 2.8mm cctv lens
1/4 2.8mm F2.4/F2.0 Megapixel M12x0.5 mount board lens for JX-H42/OV9712, 2.8mm cctv lens
1/4 2.8mm F2.4/F2.0 Megapixel M12x0.5 mount board lens for JX-H42/OV9712, 2.8mm cctv lens
1/4 2.8mm F2.4/F2.0 Megapixel M12x0.5 mount board lens for JX-H42/OV9712, 2.8mm cctv lens
1/4 2.8mm F2.4/F2.0 Megapixel M12x0.5 mount board lens for JX-H42/OV9712, 2.8mm cctv lens
1/4 2.8mm F2.4/F2.0 Megapixel M12x0.5 mount board lens for JX-H42/OV9712, 2.8mm cctv lens
Specifications
Brand Name :
CCOM LENS
Model Number :
14028MPF(A)
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Video Lens :
M12 Mount Board Lens
Resolution :
Megapixel
FOV(D*H*V) :
JX-H42: 101.6°*85.2°*50.5°, OV9712: 110°*85.2°*51.2°
Constructure :
5G/5G+IR
Description

1/4" 2.8mm F2.4 Megapixel M12x0.5 mount board lens for JX-H42/OV9712, 2.8mm 110degree cctv lens

MODEL 14028MPF(A)

SENSOR FORMAT 1/4"

SENSOR JX-H42 & OV9712
MAX IMAGE CIRCLE Φ5.8mm
FOCAL LENGTH(EFL) 2.8mm
F.O.V. (D*H*V) JX-H42: 101.6°*85.2°*50.5°, OV9712: 110°*85.2°*51.2°
RESOLUTION 1.3MP
APERTURE F2.4/F2.0(OV9712)
OPTICAL DISTORTION JX-H42: H -8.7%, V -24.68%; OV9712: H -8.2%, V -25%
MOUNT M12X0.5
B.F.L.(O) 5.27mm
B.F.L.(M) 2.98mm
T.T.L. 16.57mm
LENS CONSTRUCTURE 5G+IR

DIMENSION(mm) Φ14x13.59
RELATIVE ILLUMINATION JX-H42: >84%; OV9712: >82.9%
IR COATING 640±8NM AT: 50%
CHIEF RAT ANGLE JX-H42: <19.97°; 1/4” OV9712: <13.2°

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
