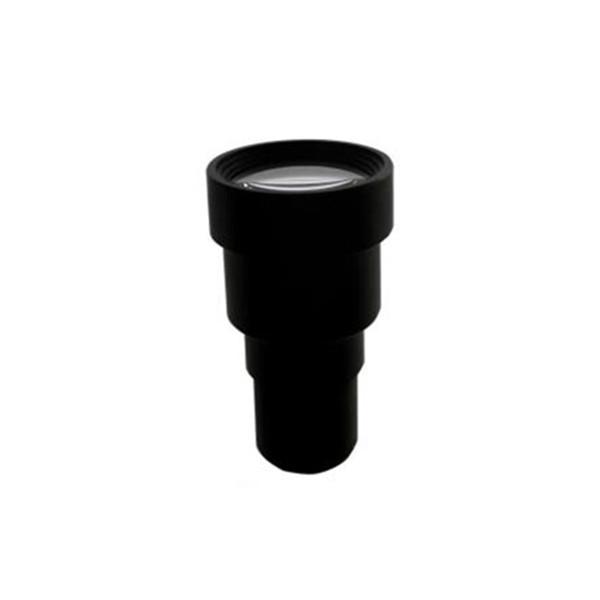

1/2 35mm F2.4 8MP Megapixel M12x0.5 mount low distortion MTV board lens, 35mm S mount lens
1/2 35mm F2.4 8MP Megapixel M12x0.5 mount low distortion MTV board lens, 35mm S mount lens
Specifications
Brand Name :
CCOM LENS
Model Number :
233524MP 233524MPF
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Delivery Time :
3-8 work days
Packaging Details :
Standard
Board Lens :
M12 Mount Low-distortion Lens
Resolution :
8MP
Distortion :
<0.71% @φ9.2mm
Constructure :
Metal + glasses
Description

Economic good 1/2" 35mm F2.4 8MP Megapixel S-mount M12x0.5 mount Low-distortion Board Lens, 35mm 8MP long focal Lens for 2/3" 1/1.8" 1/2" sensors

MODEL 123524MP

IMAGE FORMAT 1/2"
MAX IMAGE CIRCLE φ9.2mm
SENSOR CCD/CMOS
FOCAL LENGTH 35mm
RESOLUTION 8MP
F.O.V.(DxHxV) 1/2": 12.6°x 10.1°x 7.6°
APERTURE F2.4
OPTICAL DISTORTION 0.71% @φ9.2mm
IRIS Fixed
M.O.D. 1m
MOUNT M12XP0.5 - 6g
B.F.L. 7.569mm
M.B.F. 5.023mm
T.T.L. 34.80mm
C.R.A. ≤13.2°@φ9.2mm
IR COLLECTION NO (IR collection is optional)
DIMENSION Φ20*33.7mm
NET WEIGHT 14g

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional
- For more lenses, please feel free to contact us at sales01@megapixellenses.com.
