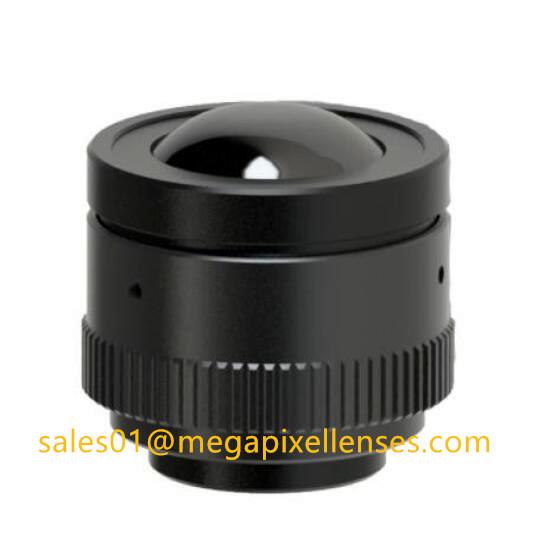

Long Wavelength 8~14um Prime Lens f4.8mm F1.0 M34x0.75 mount IR Lens
Long Wavelength 8~14um Prime Lens f4.8mm F1.0 M34x0.75 mount IR Lens
Specifications
Brand Name :
CCOM LENS
Model Number :
LWIR4810
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
IR Lens :
Long Wavelength Prime Lens
Wavelength :
8~14um
Focal Length :
4.8±5% mm
Aperture :
F1.0±10%
Description

Long Wavelength 8~14um Prime Lens f4.8mm F1.0 M34x0.75 mount IR Lens

Model no.: LWIR4810
Transmission(8-12μm): ≥86%
Wavelength: 8~14um
Focal length: 4.8±5%mm
Aperture: F1.0±10%
Mount: M34×0.75-6g
F.O.V (D*H*V): 336*256, 17μm: 41°*33°*25.2°; 384*288, 17μm: 46°*38°*28.5°; 384*288, 25μm: 67°*54°*41.3°; 640*480, 17μm: 76°*61°*45.5°
Optical Distortion: -71.7% in φ14mm
Mechanical back intercept: 6.83mm (in air)
IRIS: Fixed
Dimension: Ø40 x L38.2mm

Tip:
- For more lenses, please feel free to contact us at sales01@megapixellenses.com
