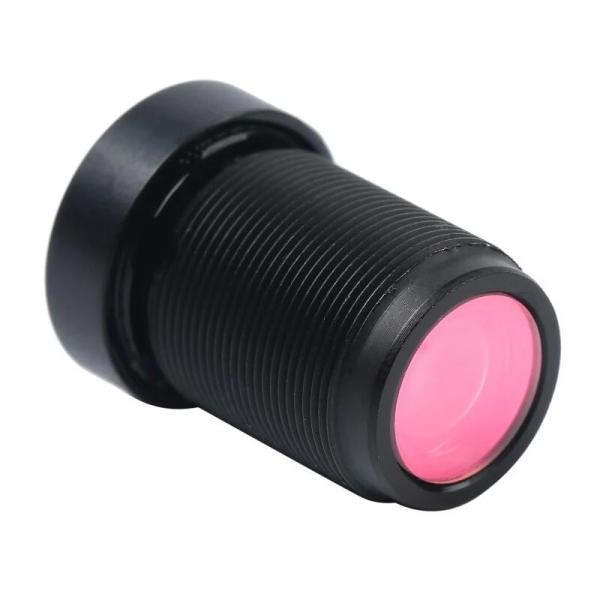

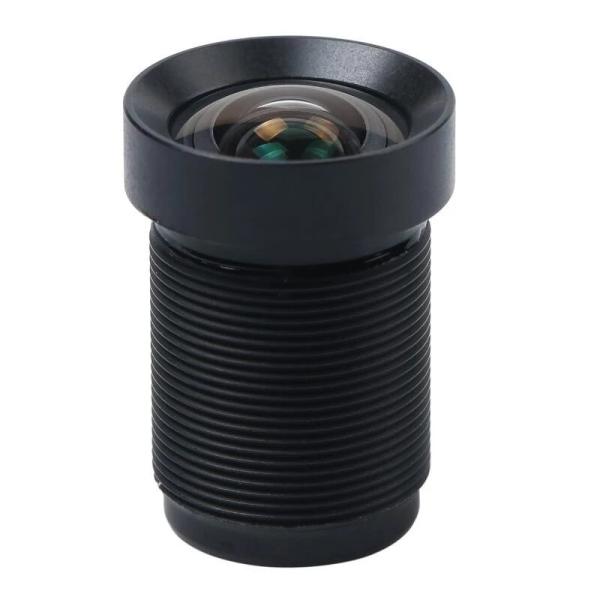

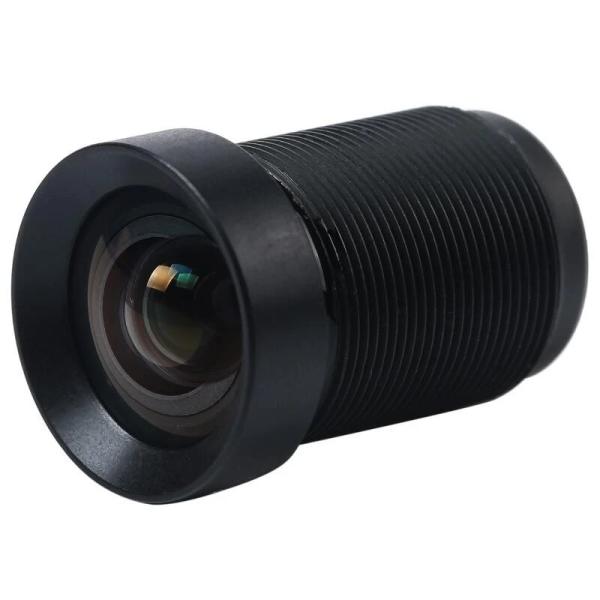

1/2.3 4.35mm 4K 10Megapixel M12x0.5 Mount Low-Distortion Board Lens, Economic 4.35mm 4K action camera lens
1/2.3 4.35mm 4K 10Megapixel M12x0.5 Mount Low-Distortion Board Lens, Economic 4.35mm 4K action camera lens
1/2.3 4.35mm 4K 10Megapixel M12x0.5 Mount Low-Distortion Board Lens, Economic 4.35mm 4K action camera lens
1/2.3 4.35mm 4K 10Megapixel M12x0.5 Mount Low-Distortion Board Lens, Economic 4.35mm 4K action camera lens
1/2.3 4.35mm 4K 10Megapixel M12x0.5 Mount Low-Distortion Board Lens, Economic 4.35mm 4K action camera lens
1/2.3 4.35mm 4K 10Megapixel M12x0.5 Mount Low-Distortion Board Lens, Economic 4.35mm 4K action camera lens
Specifications
Brand Name :
CCOM LENS
Model Number :
1230435MP 1230435MPF
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Board Lens :
M12 Mount Low-distortion Lens
Resolution :
10MP
Distortion :
<-1.2%
Lens Constructure :
4G2P/4G2P+IR
Description

1/2.3" 4.35mm F2.8 10Megapixel S mount M12x0.5 low-distortion lens for scanners/HD cameras/Action camera, 4.35mm 4K megapixel lens for Gopro Hero 4/3+ Xiaomi Yi 4k+ SJCAM DJI Phantom Drones UAVS

Model: 1230435MPF
Sensor: 1/2.3"
Max image circle: Ø 8.1mm
Focal length: 4.35mm

F.O.V: 82°(D) x 72°(H) x 56°(V)
Resolution: 10MP
F/No.: 2.8
B.F.L.: 3.62mm
F.B.L.: 2.82mm
T.T.L.: 22.00mm
Distortion(TV-DVST): <-1.2%
Mount: M12xP0.5
Lens Constructure: 4G2P+IR
RELATIVE ILLUMIMATION: >80%
CUT FREQUENCY AT50%: λ=650±10nm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com
