720P HD Megapixel USB endoscope video camera module 25fps YUV MJPG DC5V plug play driveless USB endoscope D4.5mmxL22mm
720P HD Megapixel USB endoscope video camera module 25fps YUV MJPG DC5V plug play driveless USB endoscope D4.5mmxL22mm
720P HD Megapixel USB endoscope video camera module 25fps YUV MJPG DC5V plug play driveless USB endoscope D4.5mmxL22mm
720P HD Megapixel USB endoscope video camera module 25fps YUV MJPG DC5V plug play driveless USB endoscope D4.5mmxL22mm
720P HD Megapixel USB endoscope video camera module 25fps YUV MJPG DC5V plug play driveless USB endoscope D4.5mmxL22mm
720P HD Megapixel USB endoscope video camera module 25fps YUV MJPG DC5V plug play driveless USB endoscope D4.5mmxL22mm
Specifications
Brand Name :
CCOM LENS
Model Number :
CM45L22-USB(720P)
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Delivery Time :
2-7 work days
Packaging Details :
Standard
Video Camera Module :
USB Endoscope camera
Resolution :
720P MP
Max Frame Rate :
25fps
Dimension(DxL) :
4.5mmx22mm
Output Format :
YUV, MJPG
Description

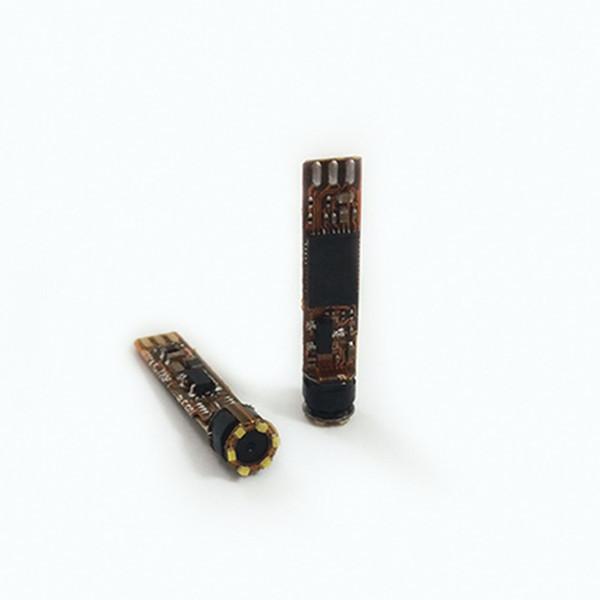

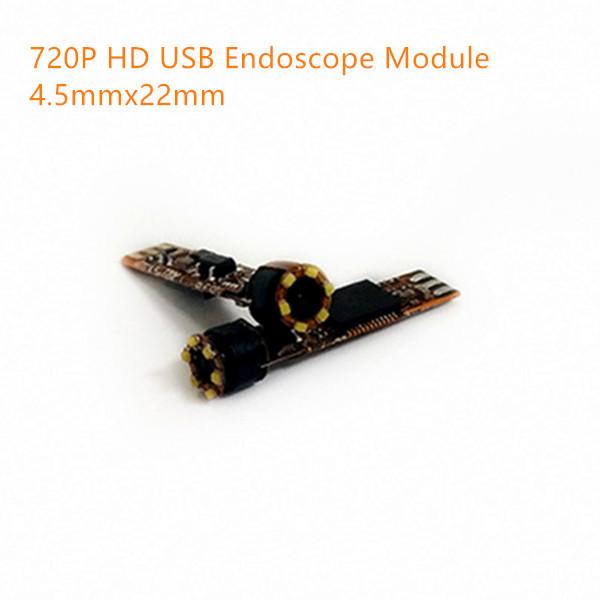

Plug and Play HD 720P Megapixel USB endoscope video camera module, USB driveless endoscope with 1/6" FOV 60° lens, 25fps YUV MJPG D4.5mmxL22mm DC5V 120mA 0.9W

The endoscope camera module is without lines/cables.

Camera module spec.:

MODEL: CM45L22-USB(720P)

SENSOR: 1/6"

PIXEL SIZE: 1.75 μ m x 1.75 μ m

LENS CONSTRUCTURE: 2P+IR

FOCUS: 1.5cm - 10cm

FOV: 60°

MAX FRAME RATE: 25fps

LENGTH: 22mm

DIAMETER: 4.5mm

SUPPORT SYSTEMS (DRIVELESS): WIFIBOX, WinXP, WinXP2, VISTA, Win7.0, Win8.0, Win10, Linux, Android4.4

OUTPUT FORMAT: YUV (1280x720 HD, 640x480 VGA, 320x240 QVGA), MJPG (1280x720 HD, 640x480 VGA, 320x240 QVGA)

POWER: DC 5V

Current:120mA

MAX POWER: 0.9W

Tips:

- Customization support

- For more lenses, please feel free to contact us at sales01@megapixellenses.com
