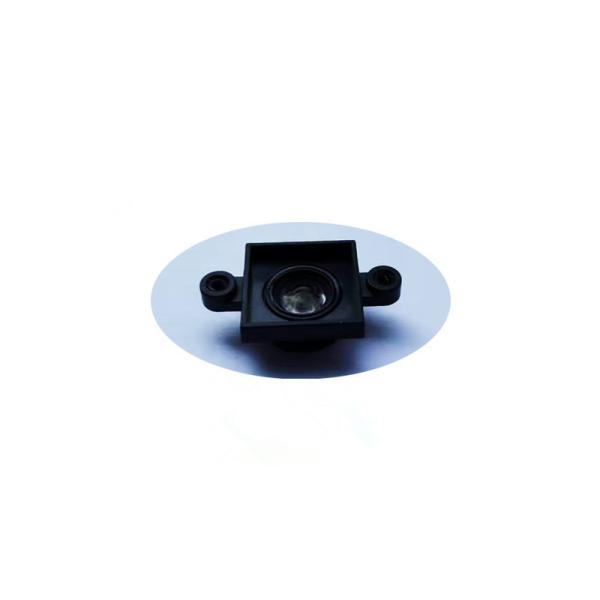

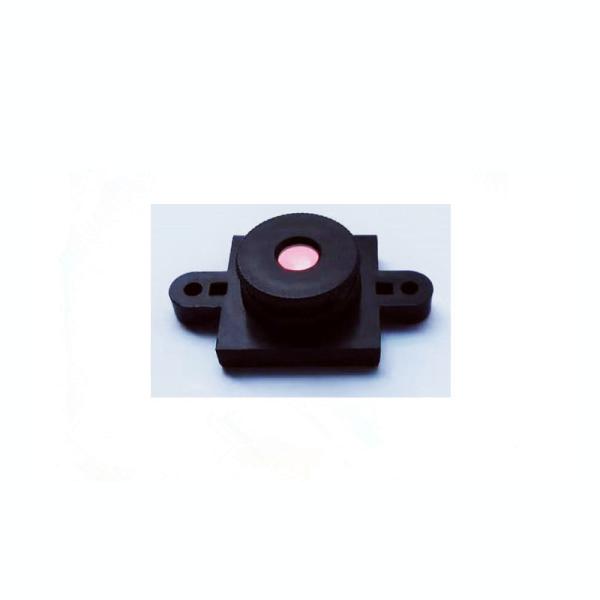

1/2.7 4.5mm F2.2 Megapixel M9x0.5 mount low distortion mini camera lens, 4.5mm HD M9 mini plastic lens
1/2.7 4.5mm F2.2 Megapixel M9x0.5 mount low distortion mini camera lens, 4.5mm HD M9 mini plastic lens
1/2.7 4.5mm F2.2 Megapixel M9x0.5 mount low distortion mini camera lens, 4.5mm HD M9 mini plastic lens
1/2.7 4.5mm F2.2 Megapixel M9x0.5 mount low distortion mini camera lens, 4.5mm HD M9 mini plastic lens
1/2.7 4.5mm F2.2 Megapixel M9x0.5 mount low distortion mini camera lens, 4.5mm HD M9 mini plastic lens
1/2.7 4.5mm F2.2 Megapixel M9x0.5 mount low distortion mini camera lens, 4.5mm HD M9 mini plastic lens
Specifications
Brand Name :
CCOM LENS
Model Number :
127045MP-M9 127045MPF-M9
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T, Western Union, Moneygram, Paypal
Supply Ability :
Samples available
Delivery Time :
3-8 work days
Packaging Details :
Standard
Video Lens :
M9 mount mini camera lens
Resolution :
Megapixel
FOV :
70°
Lens Constructure :
5P/5P+IR
Description

1/2.7" 4.5mm F2.2 Megapixel 70degree low distortion M9*0.35 mount mini lens for mini DV camera/digital cameras/drone/electronic video devices, M9 mount lens for mini video camera

MODEL: 127045MPF-M9
SENSOR SIZE: 1/2.7"

MAX IMAGE CIRCLE: Φ7.1mm
FOCAL LENGTH(mm): 4.5
F.O.V.: 70°
RESOLUTION: MP
OPTICAL DISTORTION: <1%

C.R.A.: <22°
APERTURE: F2.2 (infinity)
MOUNT(mm): M9xP0.5
IRIS: Fixed
M.O.D.: 20cm
F.B.L.(mm) 1.0
T.T.L.(mm): 6.0
LENS COMPOMEMT: 5P+IR
DIMENSION: Φ10.0x5.0mm

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
