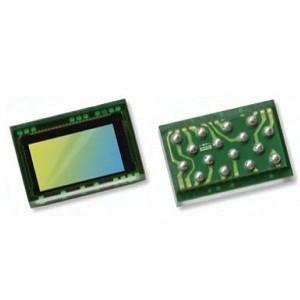

OV9734 1/9 inch Color CMOS 720p (1280x720) HD PureCel Image Sensor, medical image sensor OV9734-H16A
OV9734 1/9 inch Color CMOS 720p (1280x720) HD PureCel Image Sensor, medical image sensor OV9734-H16A
Specifications
Brand Name :
OV
Model Number :
OV9734-H16A
MOQ :
100 pieces
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
Samples available
Delivery Time :
5-30 work days
Packaging Details :
Standard
Description

The OV9734 from OmniVision is an ultra-compact and power efficient CMOS Image Sensor designed for slim notebooks, tablets, handsets, and other devices that require a thin bezel. It is built on OmniVision's PureCel® technology and is capable of capturing crisp 720p HD video at 30 frames per second (fps) or VGA video at 45 fps, while consuming approximately 25 percent less power than the previous generation 720p sensor. The OV9734 meets the video quality specifications for popular video conferencing platforms. To fit ultra-thin bezel devices, the OV9734 comes in a compact package that can meet 2.5 mm z-height and is 47 percent smaller in y-dimension compared to the previous generation 720p sensor. The OV9234, a black and white version of the OV9734, is also available as a dedicated IR camera solution for facial recognition and other biometric applications. Both sensors are available in CSP and COB packaging.

Product Details

  • Part Number
    OV9734
  • Manufacturer
    OmniVision Technologies
  • Description
    Color CMOS 720p (1280x720) HD PureCel Image Sensor

General Parameters

  • Resolution
    1280(H) x 720(V)
  • Mega Pixels
    0.922 MP
  • Supply Voltage
    1.2 to 2.6 V
  • Optical Format
    1/9 Inch
  • Package Type
    CSP
  • Chroma
    RGB, Bayer
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    30 fps
  • Pixel Size
    1.4 µm x 1.4 µm
  • Pixel
    0.922 MP
  • Active Array
    1280(H)µm x 720(V)µm
  • Dynamic Range
    68.4 dB
  • Imaging Area
    1819.58 x 1033.34 µm
  • Type
    Area Scan Sensor, Digital Sensor
  • Sensitivity
    585 mV/Lux-sec
  • SNR
    36.4 dB
  • Clock Frequency
    6 to 27 MHz
  • Note
    Dark Current: 2 e-/sec, Ray Angle: 32.1 Degree

Connections & Interface

  • Interface
    MIPI

Applications

  • Application
    Smart Phones, PC Multimedia,tablets, Digital still cameras

Physical Properties

  • Dimensions
    2532 µm x 1722 µm

Temperature

  • Operating Temperature
    -30 to 85 Degree C

For more details or image sensors, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@foxmail.com
