Specifications
Place of Origin :
Japan
Brand Name :
ERICSSON
Certification :
RoHS Compliant
Model Number :
LB070WQ5-TD01
MOQ :
1 Pcs
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
stock
Payment Terms :
T/T , Paypal, Western Union ,Escrow etc.
Supply Ability :
483
Panel Size :
7.0 inch
Resolution :
480(RGB)×240 , WQVGA
Brightness :
500 cd/m² (Typ.)
Display Colors :
262K (6-bit) , CIE1931 45%
Description

LG LB070WQ5(TD)(01) for OPEL INSIGNIA ASTRA CD500/CD600/DVD800 SCREEN MONITOR

Specification for LG LB070WQ5(TD)(01)

1,LG. LCD LB070WQ5-TD01 Basic Information

Panel Brand : LG LB070WQ5(TD)(01) for OPEL INSIGNIA ASTRA CD500/CD600/DVD800 SCREEN MONITOR
Panel Model : LB070WQ5-TD01
Model Alias : LB070WQ5 (TD)(01)
Panel Type : a-Si TFT-LCD , Panel
Application :

LG LB070WQ5(TD)(01) for OPEL INSIGNIA ASTRA CD500/CD600/DVD800 SCREEN MONITOR
Operating Temperature : -30 ~ 85 °C
Storage Temperature : -40 ~ 85 °C
RoHS : LG LB070WQ5(TD)(01) for OPEL INSIGNIA ASTRA CD500/CD600/DVD800 SCREEN MONITOR
Specific Feature :

LG LB070WQ5(TD)(01) for OPEL INSIGNIA ASTRA CD500/CD600/DVD800 SCREEN MONITOR

LG LB070WQ5(TD)(01) for OPEL INSIGNIA ASTRA CD500/CD600/DVD800 SCREEN MONITOR

LG LB070WQ5(TD)(01) for OPEL INSIGNIA ASTRA CD500/CD600/DVD800 SCREEN MONITOR

LG LB070WQ5(TD)(01) for OPEL INSIGNIA ASTRA CD500/CD600/DVD800 SCREEN MONITOR

2,LG. LCD LB070WQ5-TD01 Mechanical Features

Panel Size : 7.0 INCH
Dot Resolution : 480(RGB)×240 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 77 PPI
Aspect Ratio : 17:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.1083×0.3450 mm (H×V)
Pixel Pitch : 0.3169×0.3450 mm (H×V)
Weight : 210/220g (Typ./Max.)
Surface : Antiglare
Active Area : 155.952×82.8 mm (H×V)
Bezel Area : 158.4×85.1 mm (H×V)
Outline Dimension : 168.8×93.5 mm (H×V)
Outline Depth : 7 mm
Holes & Brackets : Rear mount holes (4-M2)
Landscape or Portrait : Landscape type
Touch Panel : Without

3,LG. LCD LB070WQ5-TD01 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 500 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 45% NTSC (CIE1931)
Response Time : 10/20 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.300; Wy:0.320
White Variation : 1.25 (Max.)(9 points)

4,LG. LCD LB070WQ5-TD01 Electronics Feature

Reverse Scan : Yes (180°)
Total Power Consumption : 4.5W (Typ.)

5,LG. LCD LB070WQ5-TD01 Backlight System

Lamp Position : Edge light type
Lamp Type : CCFL
Lamp Life Time : 15K(Typ.) (Hours)
Lamp Voltage : 565/580/730V (Min./Typ./Max.)
Lamp Current : 3/6/6.5mA (Min./Typ./Max.)
Lamp Operating Frequency : 40/80KHz (Min./Max.)
Lamp Startup Voltage : 1480/1780V (Max.)(Ta=+25/-30℃)
Lamps Power Consumption : 3.48/3.83W (Typ./Max.)

6,LG. LCD LB070WQ5-TD01 Signal Interface

Signal Category : TTL
Signal Class : TTL (1 ch, 6-bit)
Input Voltage for Panel : 5.0V (Typ.)
Interface Type : Connector

7,LG. LCD LB070WQ5-TD01 Packing Form

Amount per Box : 36 pcs
Box Size : 475×348×182 mm (L×W×H)

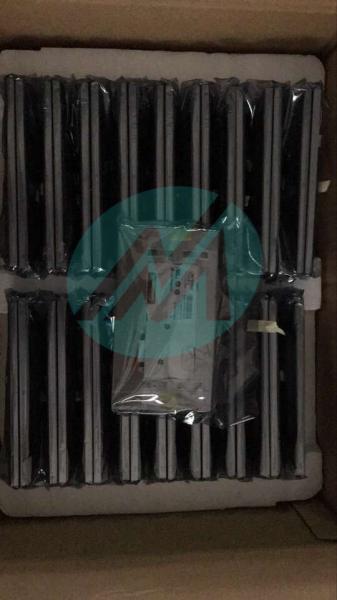

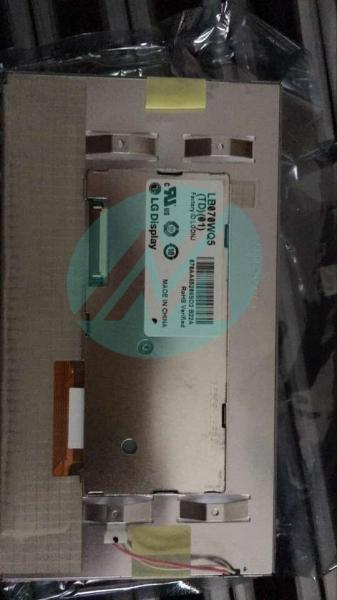

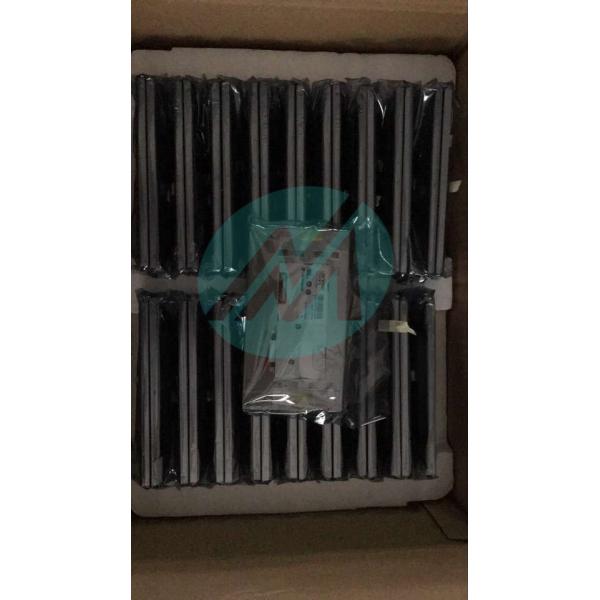

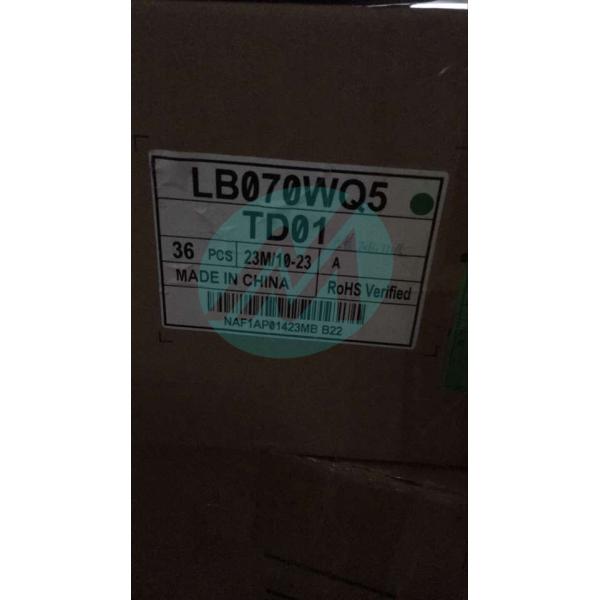

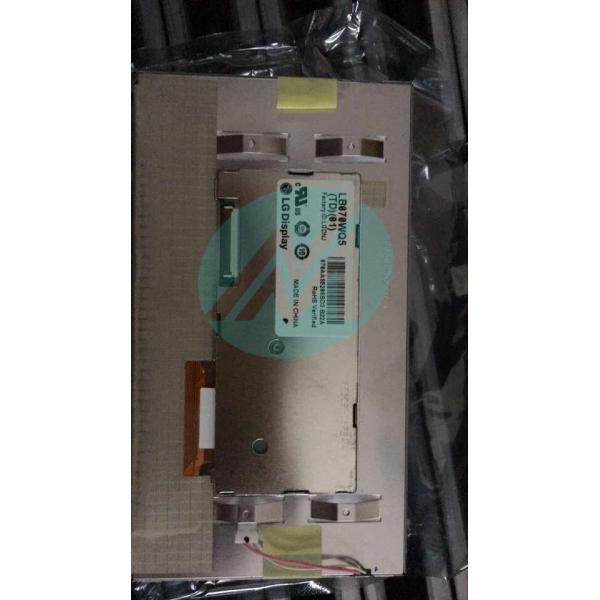

Detail picture for LG. LCD LB070WQ5-TD01 panel
