LP156WH4 (TL)(N2) LG NEW 15.6 HD LED LCD Laptop Screen/Display LP156WH4-TLN2 1366(RGB)×768 , WXGA
LP156WH4 (TL)(N2) LG NEW 15.6 HD LED LCD Laptop Screen/Display LP156WH4-TLN2 1366(RGB)×768 , WXGA
LP156WH4 (TL)(N2) LG NEW 15.6 HD LED LCD Laptop Screen/Display LP156WH4-TLN2 1366(RGB)×768 , WXGA
LP156WH4 (TL)(N2) LG NEW 15.6 HD LED LCD Laptop Screen/Display LP156WH4-TLN2 1366(RGB)×768 , WXGA
Specifications
Place of Origin :
Japan
Certification :
RoHS Compliant
Model Number :
LP156WH4-TLN2
MOQ :
1 Pcs
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
1 day
Payment Terms :
T/T , Paypal, Western Union ,Escrow etc.
Supply Ability :
478
Panel Size :
15.6 inch
Resolution :
1366(RGB)×768 , WXGA
Active Area :
344.232×193.536 mm
Outline :
359.3×209.5×5.5 mm
Shape Style :
Wedge (PCBA Bent, Depth ≥5.2mm)
Brightness :
220 cd/m² (Typ.)
Description

LP156WH4 (TL)(N2) LG NEW 15.6" HD LED LCD Laptop Screen/Display LP156WH4-TLN2 1366(RGB)×768 , WXGA

Model Number:LP156WH4 (TL)(N2)

Specification for LP156WH4 (TL)(N2) LG

1,LG Display LP156WH4-TLN2 Basic Information

Panel Brand : LP156WH4 (TL)(N2) LG NEW 15.6
Panel Model : LP156WH4-TLN2
Model Alias : LP156WH4 (TL)(N2)
Panel Type : a-Si TFT-LCD , Panel
Application :

LP156WH4 (TL)(N2) LG NEW 15.6
Operating Temperature : 0 ~ 50 °C
Storage Temperature : -20 ~ 60 °C
RoHS : LP156WH4 (TL)(N2) LG NEW 15.6
Specific Feature :

LP156WH4 (TL)(N2) LG NEW 15.6

LP156WH4 (TL)(N2) LG NEW 15.6

LP156WH4 (TL)(N2) LG NEW 15.6

LP156WH4 (TL)(N2) LG NEW 15.6

LP156WH4 (TL)(N2) LG NEW 15.6

2,LG Display LP156WH4-TLN2 Mechanical Features

Panel Size : 15.6 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 100 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.084×0.252 mm (H×V)
Pixel Pitch : 0.252×0.252 mm (H×V)
Weight : 420g (Max.)
Surface : Glare (Haze 0%), Hard coating (3H)
Active Area : 344.232×193.536 mm (H×V)
Bezel Area : 350.0×197.1 mm (H×V)
Outline Dimension : 359.3×209.5 mm (H×V)
Outline Depth : 5.5 (Max.) mm
Shape Style : Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets : Side mounting holes (8-M2) on left, right bezel
Landscape or Portrait : Landscape type

3,LG Display LP156WH4-TLN2 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 220 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Min.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 60% NTSC (CIE1931)
Response Time : 16 (Typ.)(Tr+Td)
Viewing Angle : 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.40/1.60 (Typ./Max.)(13 points)

4,LG Display LP156WH4-TLN2 Electronics Feature

Vertical Frequency : 60Hz
Reverse Scan : No
Total Power Consumption : 4.3W (Typ.)

5,LG Display LP156WH4-TLN2 Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 4 strings
Lamp Shape : 4 strings
Lamp Life Time : 12K(Min.) (Hours)
Interface Type : Included in panel signal interface
Lamp Driver Board : Embedded (LED Driver)
Lamp Driver Board : 7.0/12.0/21.0V (Min./Typ./Max.)
Lamp Driver Board : 300/335mA (Typ./Max.)
Lamp Driver Board : 3.6/4.0W (Typ./Max.)

6,LG Display LP156WH4-TLN2 Signal Interface

Signal Category : LVDS
Signal Class : LVDS (1 ch, 6-bit)
Input Voltage for Panel : 3.3V (Typ.)
Input Current for Panel : 220/260mA (Typ./Max.)
Panel Power Consumption : 0.7/0.9W (Typ./Max.)

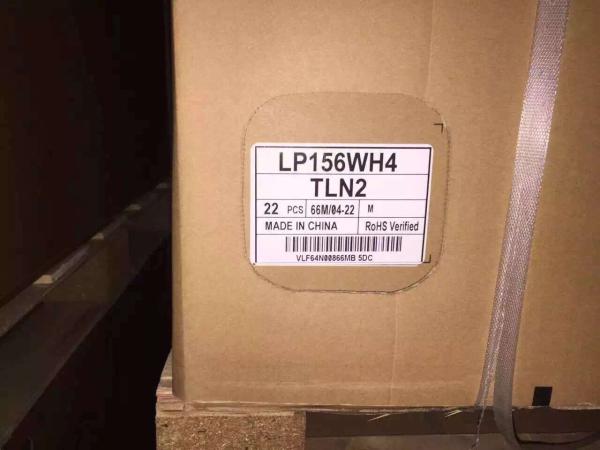

7,LG Display LP156WH4-TLN2 Packing Form

Amount per Box : 22 pcs
Box Size : 478×365×288 mm (L×W×H)

Detail pictures for LP156WH4 (TL)(N2) LG NEW 15.6" HD LED LCD Laptop Screen/Display LP156WH4-TLN2 1366(RGB)×768 , WXGA

LP156WH4 (TL)(N2) LG NEW 15.6
