SHARP DISPLAY LCD 9.4 MODEL: LM64P83L 640×480 , VGA
SHARP DISPLAY LCD 9.4 MODEL: LM64P83L 640×480 , VGA
SHARP DISPLAY LCD 9.4 MODEL: LM64P83L 640×480 , VGA
SHARP DISPLAY LCD 9.4 MODEL: LM64P83L 640×480 , VGA
SHARP DISPLAY LCD 9.4 MODEL: LM64P83L 640×480 , VGA
SHARP DISPLAY LCD 9.4 MODEL: LM64P83L 640×480 , VGA
Specifications
Place of Origin :
Japan
Brand Name :
SHARP
Model Number :
LM64P83L
MOQ :
1 Pcs
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
1 day
Payment Terms :
T/T , Paypal, Western Union ,Escrow etc.
Supply Ability :
780
Panel Size :
9.4 inch
Resolution :
640×480 , VGA
Active Area :
191.97×143.97 mm
Outline :
260×174 mm
Input Voltage :
5.0V (Typ.)
Signal Interface :
Parallel Data (4-bit) , 15 pins
Description

SHARP DISPLAY LCD 9.4" MODEL: LM64P83L 640×480 , VGA

Model Number:LM64P83L

Specification for Sharp LM64P83L

1,SHARP LM64P83L Basic Information

Panel Brand : SHARP DISPLAY LCD 9.4
Panel Model : LM64P83L
Panel Type : FSTN-LCD , Panel
Application :

SHARP DISPLAY LCD 9.4
Operating Temperature : 0 ~ 45 °C
Storage Temperature : -25 ~ 65 °C
RoHS : SHARP DISPLAY LCD 9.4
Specific Feature :

2,SHARP LM64P83L Mechanical Features

Panel Size : 9.4inch
Dot Resolution : 640×480 (VGA)
Pixel Configuration : Rectangle
Pixel Density : 84 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.30×0.30 mm (H×V)
Pixel Pitch : 0.30×0.30 mm (H×V)
Weight : 340g
Active Area : 191.97×143.97 mm (H×V)
Bezel Area : 196.0×147.6 mm (H×V)
Outline Dimension : 260×174 mm (H×V)
Outline Depth : 7.0 (Max.) mm
Holes & Brackets : Face mounting holes (4-Φ3.5)
Landscape or Portrait : Landscape type
Touch Panel : Without

3,SHARP LM64P83L Optical Features

Display Mode : STN, Black/White (Negative), Transmissive
Brightness : 65 cd/m² (Typ.)
Contrast Ratio : 18 : 1 (Typ.) (Transmissive)
Display Color : Monochrome ()
Response Time : 200/150 (Typ.)(Tr/Td)
Viewing Angle : 25/25/20/10 (Typ.)(CR≥4) (L/R/U/D)

4,SHARP LM64P83L Electronics Feature

Reverse Scan : No
Total Power Consumption : 2.38W (Typ.)

5,SHARP LM64P83L Backlight System

Lamp Position : Edge light type (Bottom side)
Lamp Type : CCFL
Lamp Amount : 1 pcs
Lamp Shape : Straight
Lamp Life Time : 25K(Typ.) (Hours)
Lamp Voltage : 470V (Typ.)
Lamp Current : 5.0/6.0mA (Typ./Max.)
Lamps Power Consumption : 2.0W (Typ.)
Interface Type : Connector

6,SHARP LM64P83L Signal Interface

Signal Category : Parallel Data
Signal Class : Parallel Data (4-bit)
Input Voltage for Panel : 5.0V (Typ.)
Input Current for Panel : 24mA (Typ.)
Panel Power Consumption : 380/590mW (Typ./Max.)
Interface Type : Connector

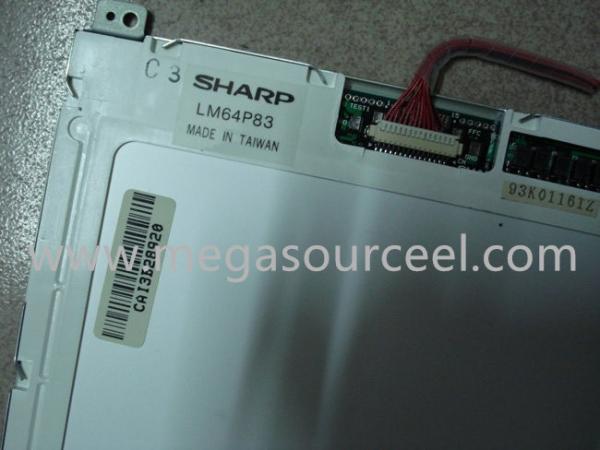

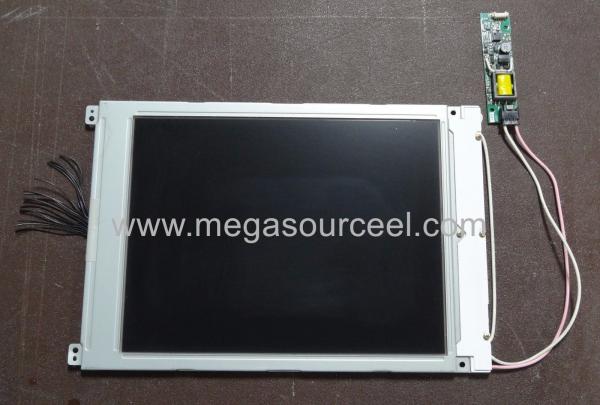

Detail picture for Sharp LM64P83L 9.4" LCD Panel w/ Backlight Driver

SHARP DISPLAY LCD 9.4SHARP DISPLAY LCD 9.4SHARP DISPLAY LCD 9.4
