AUO 15 G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA
AUO 15 G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA
AUO 15 G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA
AUO 15 G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA
AUO 15 G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA
AUO 15 G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA
AUO 15 G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA
AUO 15 G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA
AUO 15 G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA
AUO 15 G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA
AUO 15 G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA
AUO 15 G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA
Specifications
Place of Origin :
Japan
Brand Name :
AUO
Model Number :
G150XG01 V1
MOQ :
1 Pcs
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
1 day
Payment Terms :
T/T , Paypal, Western Union ,Escrow etc.
Supply Ability :
568
Panel Size :
15 inch
Resolution :
1024(RGB)×768 , XGA
Brightness :
350 cd/m² (Typ.)
Contrast Ratio :
700:1 (Typ.)
Frequency :
60Hz
Input Voltage :
3.3V (Typ.)
Outline :
326.5×253.5×12 mm
Active Area :
304.128×228.096 mm
Description

AUO 15" G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA

Model Number:G150XG01 V1

1,AUO G150XG01 V1 Basic Information

Panel Brand : AUO 15
Panel Model : G150XG01 V1
Model Alias : G150XG01 V.1
Panel Type : a-Si TFT-LCD , Panel
Application :

AUO 15
Operating Temperature : -30 ~ 85 °C
Storage Temperature : -30 ~ 85 °C
RoHS : AUO 15

2,AUO G150XG01 V1 Mechanical Features

Panel Size : 15 "
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch : 0.297×0.297 mm (H×V)
Weight : 1.10Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 304.128×228.096 mm (H×V)
Bezel Area : 307.4×231.3 mm (H×V)
Outline Dimension : 326.5×253.5 mm (H×V)
Outline Depth : 12.0 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

3,AUO G150XG01 V1 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.2M (6-bit / 6-bit + FRC)
Color Gamut : 65% NTSC (CIE1931)
Response Time : 5.7/2.3 (Typ.)(Tr/Td)
Viewing Angle : 80/80/70/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)

4,AUO G150XG01 V1 Electronics Feature

Vertical Frequency : 60Hz
Reverse Scan : Yes (180°)
Total Power Consumption :

8.9W (Typ.)

5,AUO G150XG01 V1 Backlight System

Lamp Position : Edge light type (Top and Bottom)
Lamp Type : CCFL
Lamp Amount : 2 pcs
Lamp Shape : Straight
Lamp Life Time : 50K(Min.) (Hours)
Lamp Replaceable : Replaceable
Lamp Voltage : 630±63V
Lamp Current : 2.5/5.5/6.5mA (Min./Typ./Max.)
Lamp Operating Frequency : 40/46/65KHz (Min./Typ./Max.)
Lamp Startup Voltage : 1180/1480V (Min.)(Ta=+25/0℃)
Lamps Power Consumption : 6.93W (Typ.)
Interface Type : Connector

6,AUO G150XG01 V1 Signal Interface

Signal Category : LVDS
Signal Class : LVDS (1 ch, 6/8-bit)
Input Voltage for Panel : 3.3V (Typ.)
Input Current for Panel : 550/660mA (Typ./Max.)
Panel Power Consumption : 1.9/2.2W (Typ./Max.)
Interface Type : Connector

7,AUO G150XG01 V1 Packing Form

Amount per Box : 15 pcs
Box Size : 375×430×360 mm (L×W×H)
Box Gross Weight : 20 Kgs

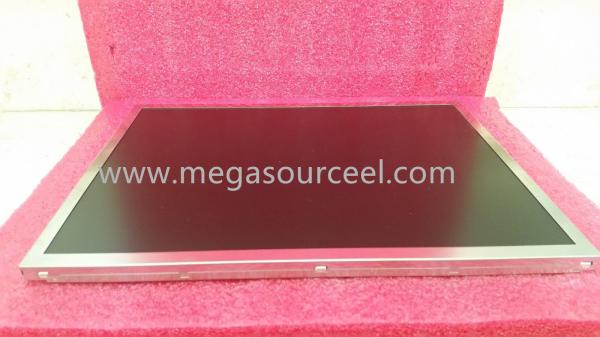

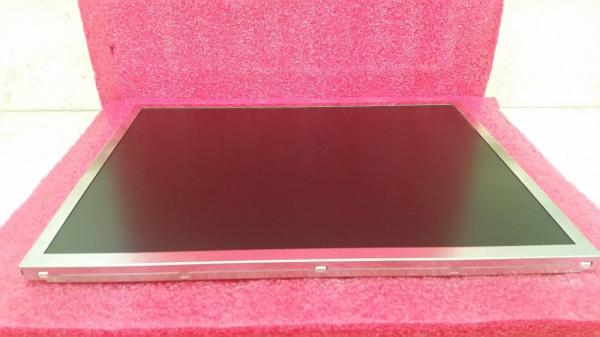

Detail pictures for AUO 15" G150XG01 V1 G150XG01 V.1 G150XG01V.1 TFT LCD PANEL 1024(RGB)×768 , XGA

AUO 15AUO 15
