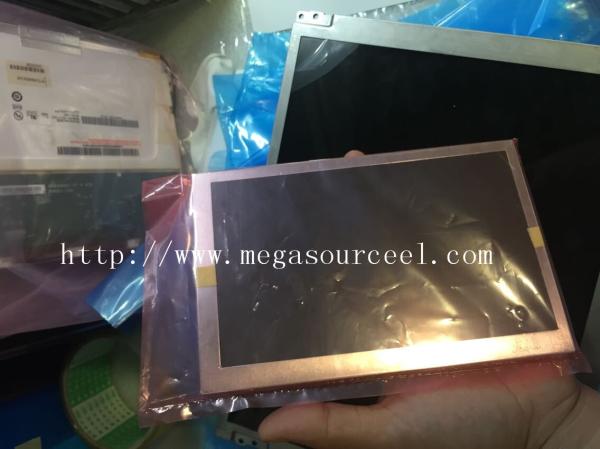

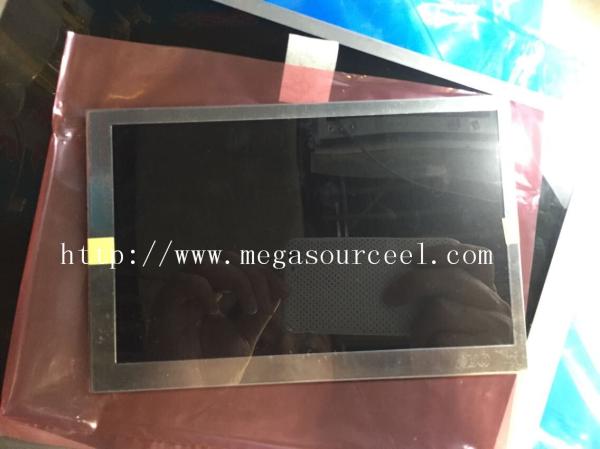

LCD Panel Types HT10X21-311/101 10.4 inch 1024×768 with 170 cd/m² (Typ.)
LCD Panel Types HT10X21-311/101 10.4 inch 1024×768 with 170 cd/m² (Typ.)
LCD Panel Types HT10X21-311/101 10.4 inch 1024×768 with 170 cd/m² (Typ.)
LCD Panel Types HT10X21-311/101 10.4 inch 1024×768 with 170 cd/m² (Typ.)
LCD Panel Types HT10X21-311/101 10.4 inch 1024×768 with 170 cd/m² (Typ.)
LCD Panel Types HT10X21-311/101 10.4 inch 1024×768 with 170 cd/m² (Typ.)
Specifications
Brand Name :
HP
Certification :
ROHS COMPLIANT
Model Number :
HT10X21-311/101
MOQ :
5
Price :
Contact for Sample
Packaging Details :
Contact for Sample
Delivery Time :
Within 3days
Payment Terms :
T/T in advance, Paypal, Western Union
Supply Ability :
1312
Panel Size :
10.4 inch
Dot Resolution :
1024(RGB)×768 (XGA)
Brightness :
170 cd/m² (Typ.)
Vertical Frequency :
60Hz
Description

LCD Panel Types HT10X21-311/101 10.4 inch 1024×768 with 170 cd/m² (Typ.)

Mechanical Features

Panel Size : 10.4 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 123 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0685×0.2055 mm (H×V)
Pixel Pitch : 0.2055×0.2055 mm (H×V)
Weight : 225/235g (Typ./Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 210.432×157.824 mm (H×V)
Bezel Area : 216.6×162.4 mm (H×V)
Outline Dimension : 238.6×173.2 mm (H×V)
Outline Depth : 6.8 (Max.) mm
Holes & Brackets : Face mounting holes (4-Ф3.0) + (4-M2)
Landscape or Portrait : Landscape type
Touch Panel : Without

Optical Features

Display Mode : FFS, Normally Black, Transmissive
Brightness : 170 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 45% NTSC (CIE1931)
Response Time : 40 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.318; Wy:0.343
White Variation : 1.40 (Max.)(5 points)

Electronics Feature

Vertical Frequency : 60Hz
Reverse Scan : No
Total Power Consumption : 3.3W (Typ.)

BOE HYDIS HT10X21 Series Model

Panel Model Size Resolution cd/m2 C/R Backlight Interface
HT10X21-413 10.4" 1024×768 0 500:1 No B/L 　
HT10X21-411 10.4" 1024×768 0 400:1 No B/L 　
HT10X21-331 10.4" 1024×768 170 500:1 CCFL LVDS
HT10X21-311 10.4" 1024×768 170 500:1 CCFL LVDS
HT10X21-301 10.4" 1024×768 170 500:1 CCFL LVDS
HT10X21-200 10.4" 1024×768 191 700:1 CCFL LVDS
HT10X21-100 10.4" 1024×768 150 450:1 CCFL LVDS

10.4", 1024×768, 6-bit, LVDS, 2D, CCFL, Flat, Panel Hot Model

Panel Model Size Resolution cd/m2 C/R Backlight Interface
LTD104EA5R 10.4" 1024×768 170 100:1 CCFL LVDS
LTD104KA1S 10.4" 1024×768 170 250:1 CCFL LVDS
CLAA104XA01CW 10.4" 1024×768 300 500:1 CCFL LVDS
HT10X21-311 10.4" 1024×768 170 500:1 CCFL LVDS
NL10276BC20-04 10.4" 1024×768 300 300:1 CCFL LVDS
LTD104EA5S 10.4" 1024×768 180 100:1 CCFL LVDS
NL10276BC20-06Y 10.4" 1024×768 300 300:1 CCFL LVDS
LTM10C313K 10.4" 1024×768 150 250:1 CCFL LVDS
LTD104EA5W 10.4" 1024×768 180 100:1 CCFL LVDS
LTM10C313U 10.4" 1024×768 150 250:1 CCFL LVDS

Contact information :

Savvy Ren

Address: Flat 19, Block B, 2/F, Sheungshui Plaza, 3 Ka Fu Close Sheungshui, NT HK
Tel: +86-755-8369 0382
Fax: +86-755-6162 4128
Email: savvy@megasourceel.com

Competitive Advantage:
Warranty :180 days !
Free shipping: Order over $1000 win a free shipment fee
(goods weight below 3Kg) ,during 20130901-20130930 .


Why buy from us >>> Fast / Safely / Conveniently
• Mega Source is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>
• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.

Service >>>
• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.
