Specifications
Place of Origin :
JAPAN　
Brand Name :
Innolux
Certification :
Standard Certification
Model Number :
N070ICG-LD1
MOQ :
1 PCS
Price :
Pls Contact sales team
Packaging Details :
Standard Packaging
Delivery Time :
stoc
Payment Terms :
T/T , Paypal, Western Union Escrow etc.
Supply Ability :
5000
Panel Model :
N070ICG-LD1
Brand :
Innolux
Size :
7.0inch
Resolution :
1280×800
Description

7inch N070icg Ld1 1280x800 Ips Lcd Display Screen Support Rotate Image

1,N070ICG-LD1 Basic Information

Panel Model N070ICG-LD1
Panel Brand CHIMEI INNOLUX
Descrition a-Si TFT-LCD ,7.0 inch, 1280×800
Panel Type a-Si TFT-LCD
Operating Temperature -10 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Remarks CABC

2,N070ICG-LD1 Mechanical Features

Dot Resolution 1280(RGB)×800 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 217 PPI
Aspect Ratio 16:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.039×0.117 mm (H×V)
Pixel Pitch 0.117×0.117 mm (H×V)
Weight 85/95g (Typ./Max.)
Surface Glare (Haze 0%), Hard coating (3H)
Active Area 149.76×93.6 mm (H×V)
Bezel Area 151.76×95.6 mm (H×V)
Outline Dimension 161×107 mm (H×V)
Outline Depth 2.5/4.5 (Typ./Max.) mm
Holes & Brackets Without
Landscape or Portrait Landscape type
Touch Panel Without

3,N070ICG-LD1 Optical Features

Display Mode IPS, Normally Black, Transmissive
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Color Gamut 50% NTSC (CIE1931)
Response Time 14/11 (Typ.)(Tr/Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.308; Wy:0.324
White Variation 1.25/1.43 (Typ./Max.)(9 points)
Sunlight Readable N

4,N070ICG-LD1 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan Yes (U/D, L/R)

5,N070ICG-LD1 Backlight System

Lamp Position Edge light type
Lamp Type WLED
Lamp Amount 9S2P
Lamp Shape Array
Lamp Life Time 12K(Min.) (Hours)
Interface Type Included in panel signal interface
Lamp Driver Board 83/104/125mA (Min./Typ./Max.)

6,N070ICG-LD1 Signal Interface

Signal Category LVDS
Signal Class LVDS (1 ch, 8-bit)
Input Voltage for Panel 3.3V (Typ.)
Input Current for Panel 273/300mA (Typ./Max.)
Interface Type Connector
Signal Interface FCI - 10064555-392120HLF, Pitch:0.3 mm, Pin:39 pins

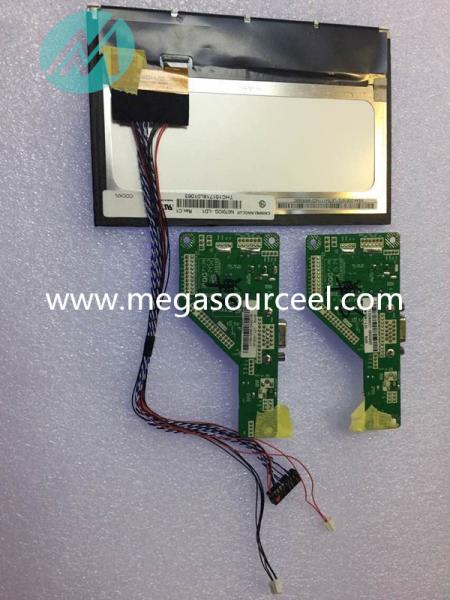

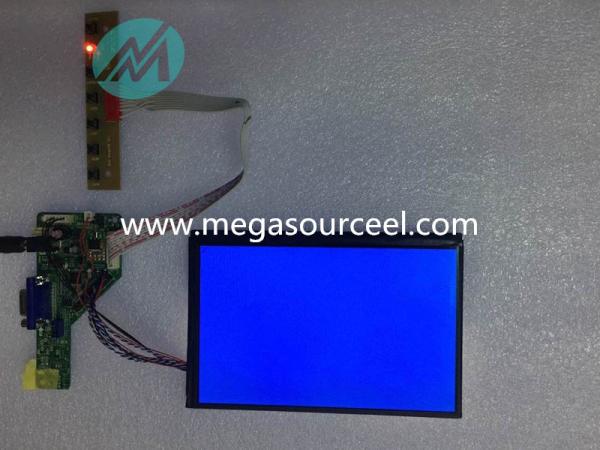

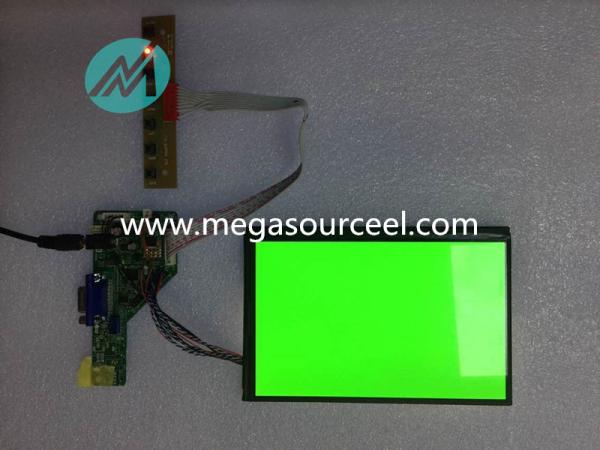

Detail picture for 7inch N070icg Ld1 1280x800 Ips Lcd Display Screen Support Rotate Image

7inch N070icg Ld1 1280x800 Ips Lcd Display Screen Support Rotate Image7inch N070icg Ld1 1280x800 Ips Lcd Display Screen Support Rotate Image7inch N070icg Ld1 1280x800 Ips Lcd Display Screen Support Rotate Image
