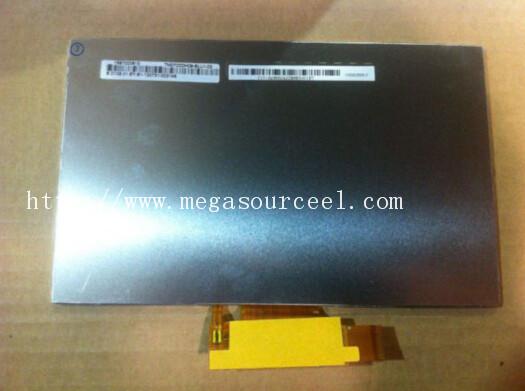

LCD Panel Types INNOLUX AT070TN90 7.0 inch 800(RGB)×480 new in stock
LCD Panel Types INNOLUX AT070TN90 7.0 inch 800(RGB)×480 new in stock
LCD Panel Types INNOLUX AT070TN90 7.0 inch 800(RGB)×480 new in stock
LCD Panel Types INNOLUX AT070TN90 7.0 inch 800(RGB)×480 new in stock
LCD Panel Types INNOLUX AT070TN90 7.0 inch 800(RGB)×480 new in stock
LCD Panel Types INNOLUX AT070TN90 7.0 inch 800(RGB)×480 new in stock
Specifications
Brand Name :
INNOLUX
Certification :
Lead free / RoHS Compliant
Model Number :
AT070TN90
MOQ :
1pcs
Price :
Contact for Sample
Packaging Details :
Standard Packaging
Delivery Time :
2-3 days
Payment Terms :
T/T in advance, Paypal, Western Union
Supply Ability :
5000
Resolution : :
800(RGB)×480 , WVGA
Contrast Ratio : :
500:1 (Typ.)
Display Mode : :
TN, Normally White, Transmissive
Panel Brand : :
INNOLUX
Description


Quick Detail:

CONDUCTIVE POLYMER CHIP CAPACITORS


Specifications:

Panel Brand : INNOLUX
Panel Model : AT070TN90
Panel Type : a-Si TFT-LCD , CELL
Panel Size : 7.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 154.08×85.92 mm
Outline : 162.53×96.62 mm
Surface : Antiglare
Glass Depth : 1.0 mm
Transmissivity : 5.11% (Typ.)(with Polarizer)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 16.7M (8-bit)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Signal Interface : Parallel RGB (1 ch, 8-bit) , 50 pins
Input Voltage : 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)

a series of panel:

PART NO. BRAND SIZE QTY
A025CTN01.0 AUO 2.5 500
A035QN05 V1 AUO 3.5 1000
A040CN01 V3 AUO 4 1000
A043FW03 V2 AUO 4.3 1000
A056DN01 AUO 5.6" 1050
A070STN01.1 AUO 7 1000
A070VW08 V2 AUO 7 1000
A085FW01 V5 AUO 8.5 1000
A090VW01 V3 AUO 9 500
A101VW01 V3 AUO 10.1 1000
A104SN03 V1 AUO 10.4 1000
A116XW02 V0 AUO 11.6 1000
AA065VE11 MITSUBISHI 6.5" 500
AA084SA01 MITSUBISHI 8.4" 193
AA084VC05 MITSUBISHI 8.4" 550
AA084VC05/06 MITSUBISHI 8.4" 550
AA084XA03 MITSUBISHI 8.4" 136
AA104VC10 MITSUBISHI 10.4" 640
AA104VH02 MITSUBISHI 10.4" 150
AA104XD12 MITSUBISHI 10.4" 145
AA121SK12 MITSUBISHI 12.1" 150
AA121SK12 MITSUBISHI 12.1 1000
AC121SA01 MITSUBISHI 12.1 1000
ACX318ELN-7 SONY 1.5 9500
ACX506AKQ-7 SONY 2.2 2300
AT050TN22 INNOLUX 5.0" 2050
AT050TN22.V1 CHIMEI 5 1000
AT050TN23 INNOLUX 5.0" 3050
AT050TN23 V.1 INNOLUX 5.0" 1050


Contact information :

Savvy Ren

Address: Flat 19, Block B, 2/F, Sheungshui Plaza, 3 Ka Fu Close Sheungshui, NT HK
Tel: +86-755-8369 0382
Fax: +86-755-6162 4128
Email: savvy@megasourceel.com

Competitive Advantage:

Warranty :180 days !
Free shipping: Order over $1000 win a free shipment fee
(goods weight below 3Kg) ,during 20130901-20130930 .
Why buy from us >>> Fast / Safely / Conveniently
• Mega Source is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>
• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.

Service >>>
• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.
